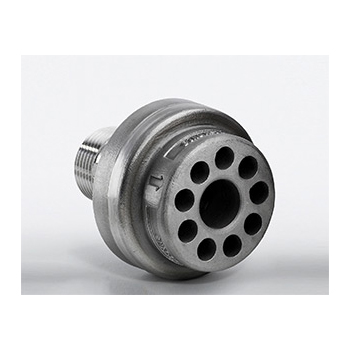

IN25M steam ejector
The diameter of Spirax Sarco IN25M steam ejector is 1 ". The maximum saturated steam condition is 17barg @ 207 ℃. There are three types of connection methods: NPT, BSPT male thread and butt welding. Use steam to heat water or other fluids. When working, the spray of steam sucks liquid from the annular hole, mixes it, and then sprays heated hot water into the water tank.

Ejector-induced circulation ensures adequate mixing and avoids temperature stratification differences. Three caliber injectors are available for a very wide range of applications. The smallest IN15 injector has internal / external threads and can be installed directly on the tank wall or piped into the tank. IN25M injector and IN40M have external thread and butt welding type, and are installed as IN15 injector. When higher flow rates are required, two or more injectors can be installed in parallel.

Some products and services are only available in certain regions.

Main features of Spirax Sarco IN25M injector
All stainless steel
Ideal application for boiler feed water heating and deaeration
Effective steam heating of water and other fluids
Heating, mixing and cycling
No moving parts
Compact design
Minimize noise and vibration
Precautions for installing the Spirax Sarco IN25M injector
The IN25M injector is installed in a lower position in the water tank, preferably at the center line, to spray steam horizontally. The pipes can be inside or outside the tank. Steam pipes must be well fixed to prevent vibration and stress on the tank wall. It is recommended to use a suitable adhesive at the threaded interface.
The diameter of the pipe is the same as that of the injector. For example, the IN25M injector uses a 25mm pipe.
