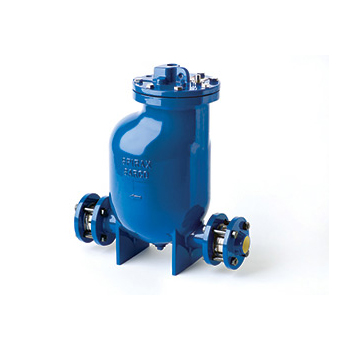

MFP14-PPU condensate
pump
In the steam system, effective condensate management can achieve the best energy recovery, and it is also an important prerequisite to ensure plant efficiency and improve product quality. Spirax Sarco's MFP14-PPU combination
pump provides the most effective solution to this problem.
Some products and services are only available in certain regions.
Spirax Sarco MFP14 Condensate Pump Condensate Management Includes Two Key Issues
Recovery of condensate: When the condensate is discharged from the trap, it contains 20% of the energy of the total steam heat.
Recycling these high-value resources can save:
◆ Thermal energy saves fuel
◆ Expensive chemical water treatment fee
◆ Expensive water fee
◆ Reduce boiler blowdown
Excluding condensate: Excluding condensate from various heat exchangers and process equipment is an important condition for ensuring stable equipment operation, improving efficiency and extending life.
Effective removal of condensate prevents:
◆ Unstable temperature control ◆ Water hammer
◆ Product quality issues ◆ Noise
◆ Excessive corrosion on heating surface ◆ Equipment damage
How does the Spirax Sarco MFP14 condensate
pump work?
Spirax Sarco MFP14 automatic
pump works on the principle of positive emissions
1. The fluid enters the
pump body through the inlet check valve, so that the float is raised.
2. Residual gas / gas in the
pump body is discharged from the opened waste / steam port. When the
pump body is filled with water, the valve body turning mechanism is activated, the power gas / steam inlet valve is opened, and the colleague closes the waste gas / gas valve. Make sure the
pump switches quickly from the intake stroke to the drain stroke.
3. When the pressure in the
pump body exceeds the back pressure, the fluid pushes open the outlet check valve and enters the recovery system.
4. The liquid level in the
pump drops, the floating ball triggers the valve turning mechanism again, closes the power gas / steam inlet, and opens the exhaust gas / steam outlet.
5. The pressure in the
pump body drops, and the fluid re-enters the
pump body through the inlet check valve. The cycle begins.
Spirax Sarco MFP14 condensate
pump typical application
Drain and recover condensate at atmospheric pressure
◆ Condensate recovery for various temperature control equipment
◆ Pump high-temperature condensate to the water tank of the boiler room
◆ HVAC system
◆ Hospital, hotel and building construction, etc.
◆ General industrial applications
◆ Large flow condensate recovery in petrochemical industry
Recovering condensate from multiple heat exchangers
◆ MFP 14 combined
pump can be used to recover condensed water from multiple heat exchangers (or other process equipment) without vapor turbidity or mechanical seal problems
◆ Auxiliary open-type flash steam recovery device to reduce and eliminate the phenomenon of "Little White Dragon"
