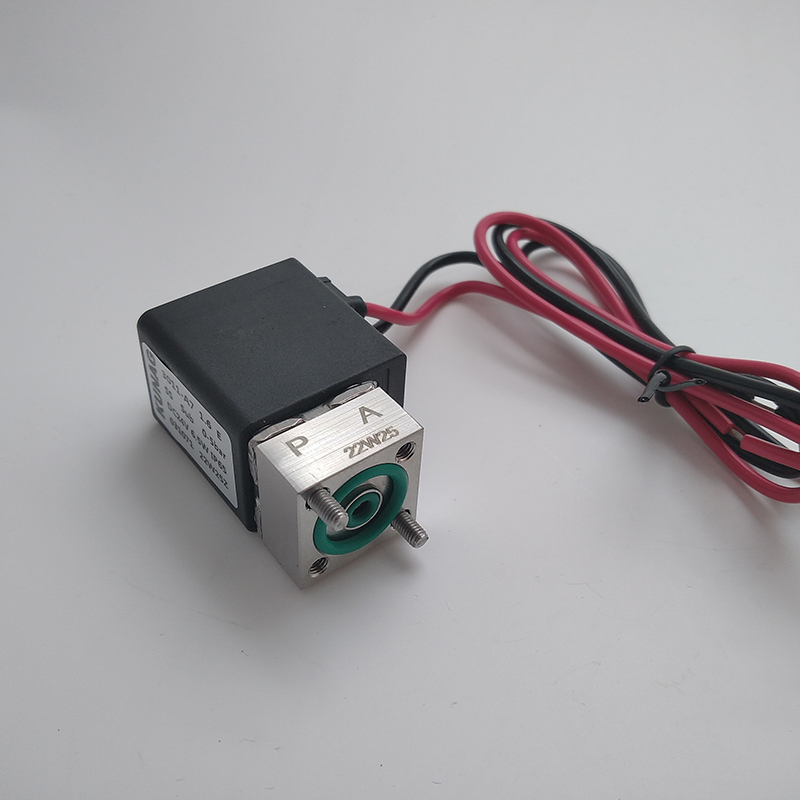

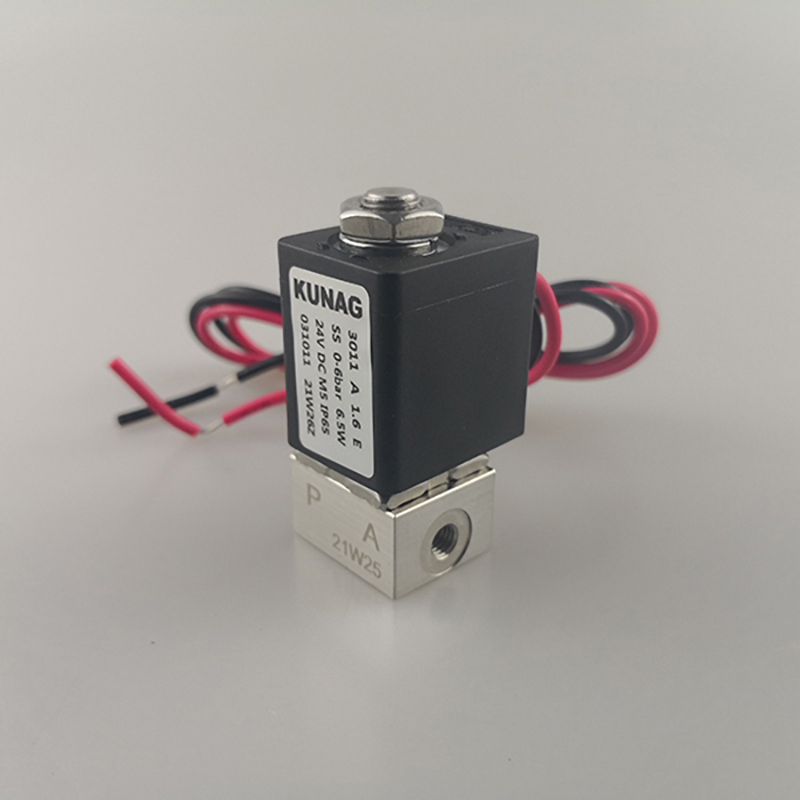

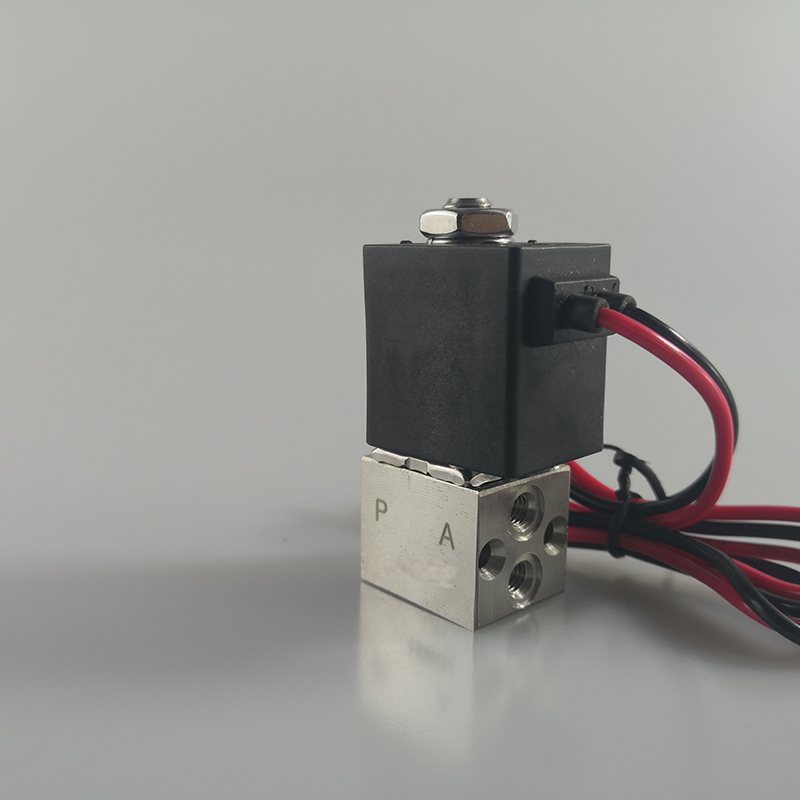

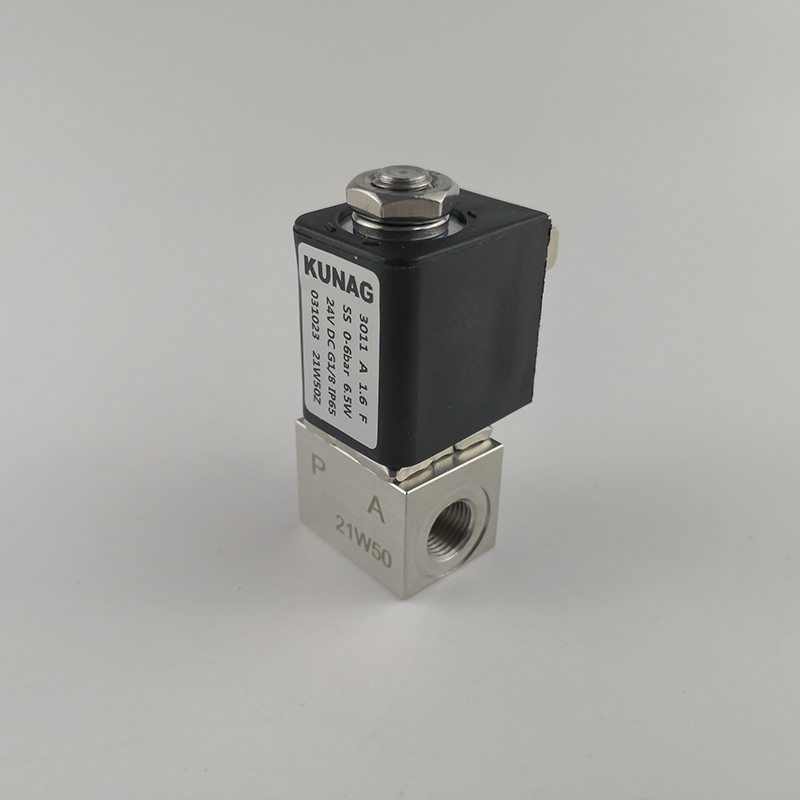

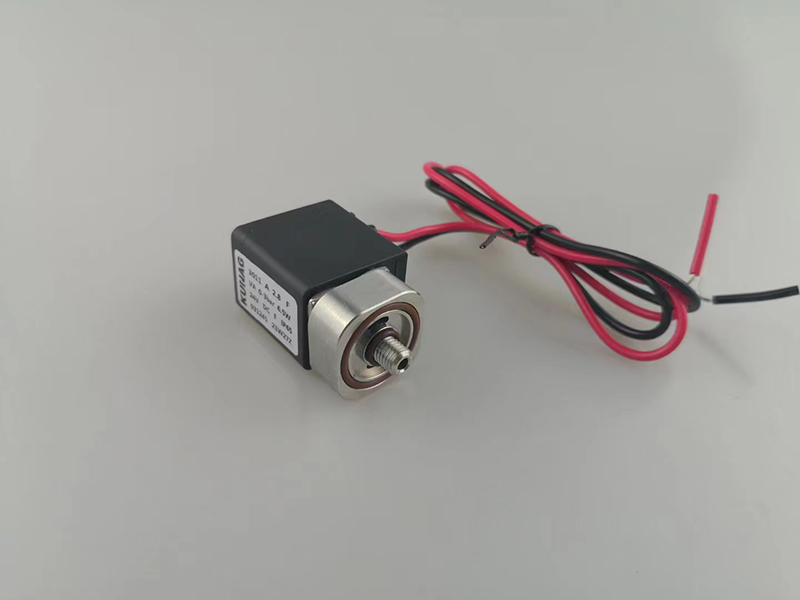

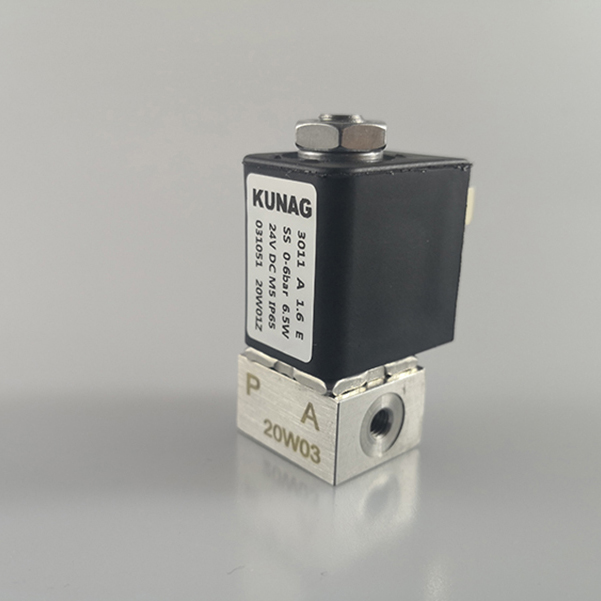

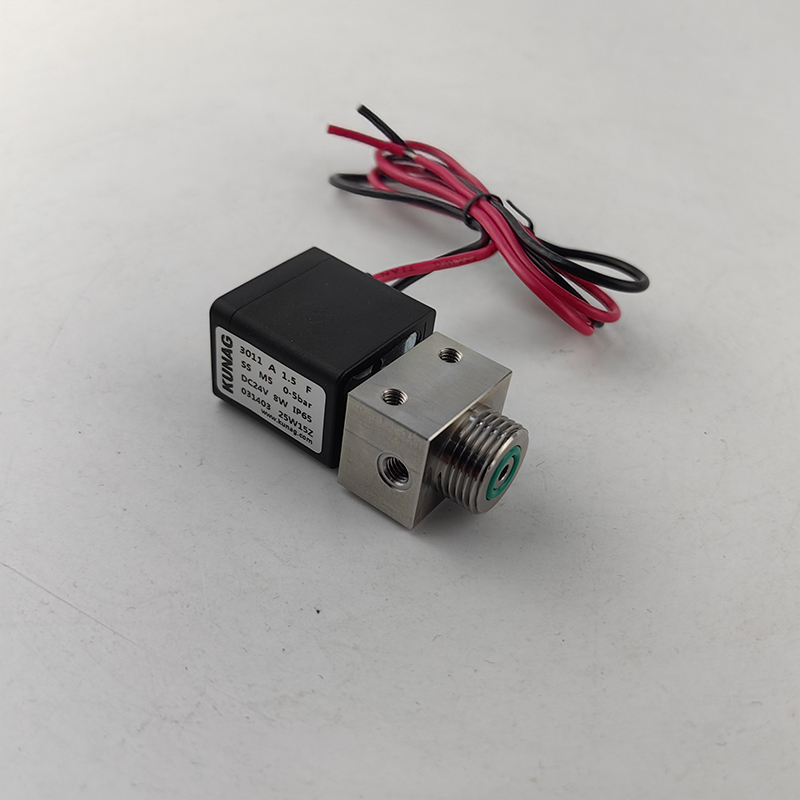

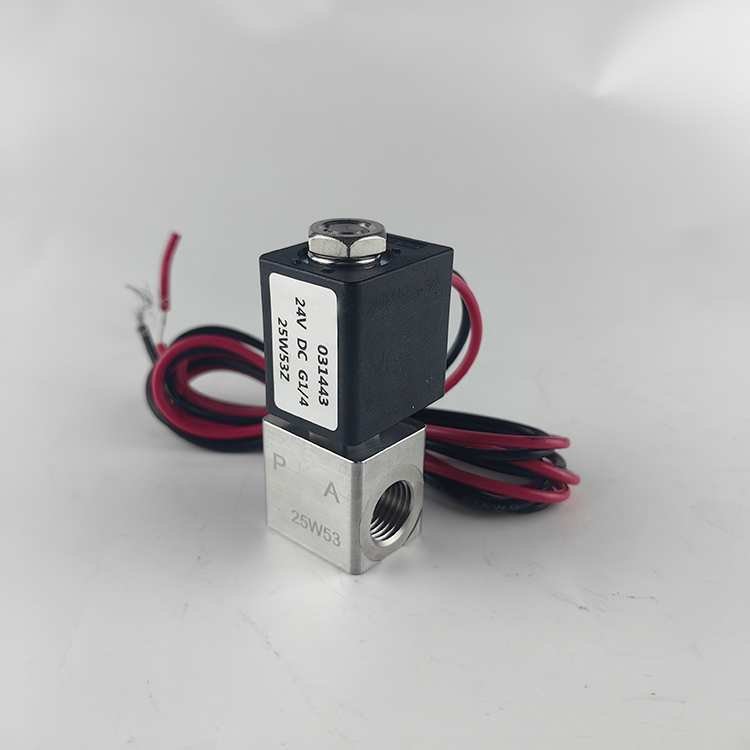

Type 3011 Miniature Two-Way Solenoid Valve, Corrosive Gas and Liquid Shutoff Valve

Type 3011 Mini Two-Way Solenoid Valve: Fully Stainless Steel Body, Zero Leakage Solution for Harsh Media Environments In the fields of analytical instruments, medical equipment, and industrial automation, fluid control often faces the dual challenges of miniaturization and high corrosivity. When ordinary solenoid valves cannot withstand the erosion of strong acids, alkalis, or organic solvents, equipment stability and safety are at risk.
For this purpose, we are officially launching the all-new 3011 model of micro two-way solenoid valve. This product is specifically designed for precise control of corrosive gases and liquids. It boasts a stainless steel body, providing a robust defense, and redefines the reliability standards for micro valves with its zero-leakage performance.
Core Advantages: Tailored for Corrosive Media 1. Made of 316L stainless steel, setting a new standard for corrosion resistance Unlike micro valves on the market that use brass or ordinary plated carbon steel, the 3011 valve body and all components in contact with the medium are made of 316L stainless steel.
Excellent corrosion resistance: capable of withstanding long-term erosion from strong acids, alkalis, salt spray, and organic solvents, making it perfectly suitable for harsh working conditions such as chemical sample injection, seawater treatment, and electroplating solution addition.
High purity and cleanliness: The stainless steel material boasts an extremely high surface finish, making it less prone to microbial growth or particle adsorption, thus meeting the stringent cleanliness requirements for flow paths in medical diagnosis and laboratory analysis.
2. Zero leakage technology ensures safety and precision. For corrosive media, any minor leakage poses a safety risk and compromises precision. The Model 3011 achieves zero leakage closure of the valve through precise machining processes and sealing technology.
Precision sealing structure: Utilizing planar grinding sealing and high-performance corrosion-resistant seals (standard configuration FKM, optional EPDM, FFKM perfluoroether rubber), it achieves bubble-level sealing even under vacuum or low pressure conditions, ensuring no internal leakage.
Long-term reliability: Under conditions of frequent switching, it maintains stable sealing performance, preventing external leakage and ensuring the safety of surrounding sensitive circuits and operating personnel.
3. Miniature size, high flow response In response to the trend of equipment miniaturization, the 3011 model achieves efficient fluid control within a compact structure:
Quick response: Direct-acting design, with a response time reaching millisecond level (e.g. < 10ms), meeting the needs of high-frequency precise dosing.
Optimized flow channel design: Provides multiple diameter options (such as 0.8 mm / 1.2 mm / 1.6 mm) within a limited volume, ensuring smooth passage even for viscous or high-density liquids, and reducing pressure loss.
Low power consumption: The optimized electromagnetic coil solution features low temperature rise, making it suitable for long-term live operation without affecting heat-sensitive media.
Application Fields: Due to its stainless steel material and zero-leakage feature, the 3011 solenoid valve performs exceptionally well in the following scenarios:
Analytical instruments: gas chromatography, water quality analyzers, and gas/liquid sample switching in exhaust gas detection systems.
Medical equipment: In vitro diagnostic equipment, blood gas analyzers, cell culture medium delivery systems.
Chemical and pharmaceutical industry: fine chemical reaction dropwise addition, quantitative filling of corrosive reagents, and spraying of cleaning agents.
Semiconductor and scientific research: Control of ultrapure water or corrosive process fluids.
Technical Specifications Overview Attributes Specifications Product Name 3011 Type Mini Two-way Solenoid Valve Body Material 316L Stainless Steel Sealing Material FKM (Standard) / EPDM / FFKM (Optional, Corrosion-resistant Type) Applicable Medium Corrosive Gas, Corrosive Liquid, High-purity Water, Neutral Medium Function Type Two-way Normally Closed / Two-way Normally Open Leakage Rate Zero Leakage (Helium Leak Detection < 1 × 10⁻⁷ mbar·L/s) Orifice Size 0.8 mm / 1.2 mm / 1.6 mm (Customizable) Working Pressure 0 ~ 8 bar (High-pressure Version Customizable) Voltage DC 12V / 24V / Other Customizable Interface Form 1/8" NPT / G1/8 / Hose Connector target='_blank'>Connector / Base Plate Installation Lifespan ≥ 10 Million Cycles Why Choose Us?
In the field of fluid control, details determine success or failure. We are well aware that every drop of liquid delivered may be of great value or potentially dangerous. We not only provide valves, but also offer a commitment to "corrosion resistance" and "sealing".
If you are looking for a solenoid valve that can stably control corrosive media in a confined space without worrying about leakage risks, the Model 3011 Miniature Two-Way Solenoid Valve would be your ideal choice.
