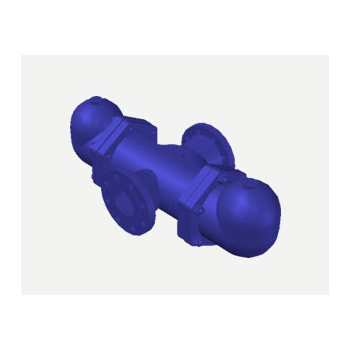

FT44 carbon steel float ball steam trap
Carbon steel float ball steam Spirax Sarco FT44 trap, stainless steel internal parts, built-in automatic air exhaust valve device, flange connection. Body and bonnet castings are produced by TÜV-certified foundries. The valve can be repaired online without disassembling the pipes. Horizontal connection, vertical connection type is FT44V (flow direction from top to bottom).
Some products and services are only available in certain regions.
Spirax Sarco FT44 Trap Sac
FT44 uses BP99 / 32 fluid sac, which can be applied to superheated steam with superheat of 150 ℃ @ 0 bar g, 50 ℃ @ 32 bar g.
Spirax Sarco FT44 Trap Option
Manually adjusted needle valve (model FT44-C), only for Spirax Sarco FT44 traps connected horizontally. This option also provides a steam breaking steam lock (SLR) function, please consult Spirax Sarco for more information. If required, 3/8 "BSP or NPT threaded holes can be drilled on the top of the bonnet for the installation of balance pipes or 3/8" BSP or NPT threaded holes on the bottom for the installation of blowdown valves. Note when ordering Bright.
Spirax Sarco FT44 trap size and pipe connection
DN15, DN20, DN25, DN40 and DN50
Horizontal installation type: Flow direction when facing the valve body DN15-25 from left to right, DN40 and DN50 from right to left. Standard flange EN1092 PN40, flange end dimensions comply with EN26554 (series 1), flange connection JIS / KS20 ANSI B 16.5class 150 and 300 extended end face dimensions are available on request.
Spirax Sarco FT44 Trap Vertical Mount
FT44 trap can flow from top to bottom. Standard flange EN1092 PN40, flange end dimensions comply with EN26554 (Series 1), flanges JIS / KS and ANSI B16.5 class150 and Class 300 flanges are available on request. ANSI flange bolt holes are UNC threads, JIS / KS flange bolts are metric threads.
Spirax Sarco FT44 Trap Ordering Instructions
Example: 1-Spirax Sarco FT44 trap-DN25-float steam trap, EN1092 PN40 flange connection, carbon steel valve body, with air exhaust valve device.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
