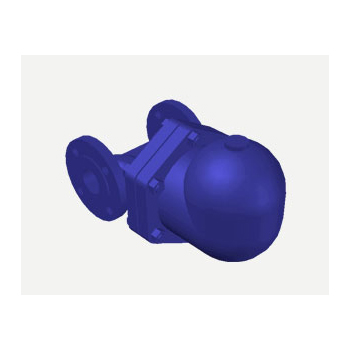

FT43 cast-iron floating ball steam trap
Float-type steam cast iron FT43 trap, stainless steel internal parts, built-in automatic air exhaust valve device, horizontal installation, flange connection, can also provide vertical installation of FT43V, online maintenance, without dismantling pipes. Another manual adjustment needle valve is available for breaking steam locks, model FT43-C. BSP or NPT threaded holes can be drilled in the bonnet as needed to install the drain valve.
Some products and services are only available in certain regions.
Spirax Sarco FT43 Trap Sac
The Spirax Sarco FT43 trap uses a BP99 / 32 fluid bladder and can be used for superheated steam with a superheat of 150 ° C @ 0 bar g and 50 ° C @ 32 bar g.
Spirax Sarco FT43 Trap Option
In addition to the exhaust valve, this type of steam trap also has a steam-break steam lock (SLR) to prevent vapor locks in the system. The letter C follows the model name. If necessary, drill 3 / "8 SP or 3 /" 8 PT threaded holes in the valve cover (lower) for the installation of the balance pipe (sewage valve).
Spirax Sarco FT43 trap size and pipe connection
DN25, DN40 and DN50
Note: When connected horizontally, facing the valve body, the flow direction of DN25 is from left to right, the flow direction of DN40 and DN50 is from right to left, and when vertically connected, the flow direction is only from top to bottom.
Standard flange EN 1092 PN16, flange face dimensions according to EN 26554 (Series 1)
Flange JIS / KS 10 and ANSI B 16.5 class 125 flanges are available on request. ANSI / JIS / KS flanges have threaded holes for easy installation of flange bolts. Bolt holes for ANSI flanges are UNC threads, and bolt holes for JIS / KS flanges are metric threads.
Spirax Sarco FT43 Trap Ordering Instructions
Example: 1-Spirax Sarco DN25, FT43-4.5 (R-L) floating ball steam trap, EN 1092 PN16 flange connection, cast iron body, with air exhaust valve device.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
