  • SMS-TORK Turkey TORK-EAV 913 ELECTRIC ACTUATED PVC BALL VALVES
  • SMS-TORK Turkey TORK-EAV 913 ELECTRIC ACTUATED PVC BALL VALVES
SMS-TORK Turkey TORK-EAV 913 ELECTRIC ACTUATED PVC BALL VALVESSMS-TORK Turkey TORK-EAV 913 ELECTRIC ACTUATED PVC BALL VALVES

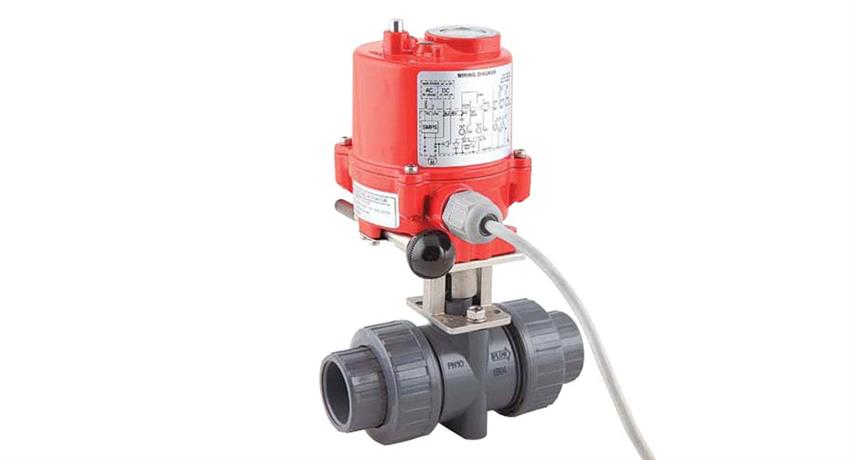

SMS-TORK Turkey TORK-EAV 913 ELECTRIC ACTUATED PVC BALL VALVES

  • SMS-TORK product selection Product quotation Technical support After-sales service
  • SMS-TORK is a Turkish company producing industrial control valves and measuring control equipment
  • SMS-TORK is a Turkish company that manufactures industrial control valves and measurement control equipment
  • Product description: Turkey Sms-TorkSms-Tork Solenoid Valve, Sms-Tork Proportional Valve, Sms-Tork Ball Valve, Sms-Tork Butterfly Valve, Sms-Tork Gate Valve, Sms-Tork Dust Removal Valve, Sms-Tork Limit Switch, Sms-Tork Li
  • INQUIRY

GENERAL DETAILS

Control : On-off (optional  proportional)
Voltage : 220 V AC, (on request 24 V DC, 380 VAC)
Operation Time : 12sn....14sn (50..60Hz ,90 derece dönüş)
Torque Value : 40 Nm…60 Nm
Protection Class : IP67
Ambient Temperature : .-20°C …70°C
Connection : ISO5211standart F03/F05/F07
Optional : LCU and  PCU

TORK-KV 913 Plastic Ball Valves
Body : U-PVC or PPRC
Connection Size : DN15…DN110
Actuator Type : REA 40  (DN15…DN40) , REA 60 (DN50... DN 110) Ara Bağlantı Parçası Kullanılır
Way : 2/2 Way
Pressure : 20mm...63mm   16 kg/cm2 under 20°C
75mm and  99mm 10 kg/cm2 under 20°C
110mm  2kg/cm220°C'ta
Temperature : U-PVC 45°C  ,PPRC 90°C
Pressure : PN 10
