GENERAL DETAILS

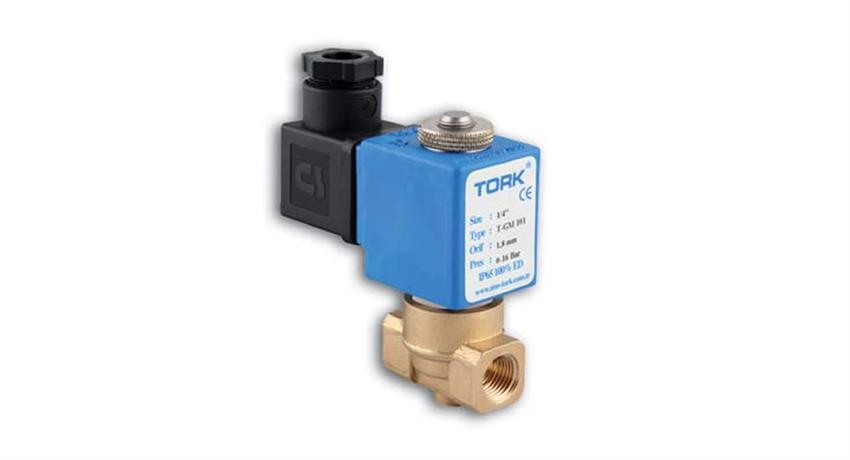

S1013 (TORK-GH) Series General Purpose High Pressure Solenoid Valve , Normally Closed

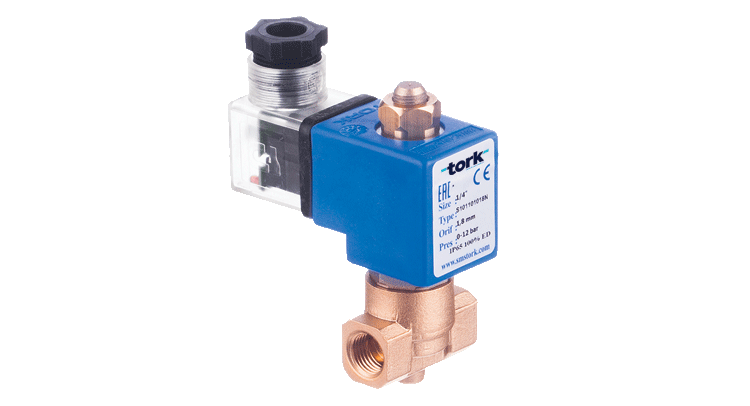

S1014 Series ( TORK-GHA) General Purpose Solenoid Valves
|
Application
|
:
|
Air, water, gas
|
|
Size
|
:
|
1/8" … 1" BSP (on request NPT)
|
|
Pressure
|
:
|
0,5 bar … 40 bar (1/8" , 1/4" …20bar… 200bar)
|
|
Tube and internal part
|
:
|
Stainless Steel
|
|
Body
|
:
|
Brass
|
|
Seal
|
:
|
PTFE+ VITON
|
|
Temperature
|
:
|
.-10°C…80 °C
|
|
Position
|
:
|
Normally Closed
|
|
Coil Voltage
|
:
|
230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
|
|
Protection Class
|
:
|
IP65 ve Exproof models
|
SPECIFICATION
Normally Closed
|
Valve Type / Order No
|
Connection Size
|
Orifice Size (mm)
|
Pressure (bar)
|
KV lt/ min
|
Fluid Temperature
|
Seal
|
Weight (kg)
|
|
Min
|
Max
|
Min
|
Max
|
|
S1013.00.010
|
1/8"
|
1
|
0
|
100
|
0,6
|
-10
|
160
|
VITON
|
0,36
|
|
S1013.00.018
|
1/8"
|
1,8
|
0
|
50
|
1,6
|
-10
|
160
|
VITON
|
0,36
|
|
S1013.00.025
|
1/8"
|
2,5
|
0
|
20
|
3,2
|
-10
|
160
|
VITON
|
0,36
|
|
S1013.01.010
|
1/4"
|
1
|
0
|
100
|
0,6
|
-10
|
160
|
VITON
|
0,35
|
|
S1013.01.018
|
1/4"
|
1,8
|
0
|
50
|
1,6
|
-10
|
160
|
VITON
|
0,35
|
|
S1013.01.025
|
1/4"
|
2,5
|
0
|
20
|
3,2
|
-10
|
160
|
VITON
|
0,35
|
|
S1013.02
|
3/8"
|
12,5
|
0,5
|
40
|
48
|
-10
|
160
|
PTFE+VITON
|
0,69
|
|
S1013.03
|
1/2"
|
14,5
|
0,5
|
40
|
70
|
-10
|
160
|
PTFE+VITON
|
0,73
|
|
S1013.04
|
3/4"
|
17
|
0,5
|
40
|
85
|
-10
|
160
|
PTFE+VITON
|
0,81
|
|
S1013.05
|
1"
|
17
|
0,5
|
40
|
90
|
-10
|
160
|
PTFE+VITON
|
0,98
|
Normally Open
|
Valve Type / Order No
|
Connection Size
|
Orifice Size (mm)
|
Pressure (bar)
|
KV lt/ min
|
Fluid Temperature
|
Seal
|
Weight (kg)
|
|
Min
|
Max
|
Min
|
Max
|
|
S1014.02
|
3/8"
|
12,5
|
0,5
|
40
|
48
|
-10
|
160
|
PTFE+VITON
|
0,71
|
|
S1014.03
|
1/2"
|
14,5
|
0,5
|
40
|
70
|
-10
|
160
|
PTFE+VITON
|
0,74
|
|
S1014.04
|
3/4"
|
17
|
0,5
|
40
|
85
|
-10
|
160
|
PTFE+VITON
|
0,82
|
|
S1014.05
|
1"
|
17
|
0,5
|
40
|
90
|
-10
|
160
|
PTFE+VITON
|
0,99
|
