GENERAL DETAILS

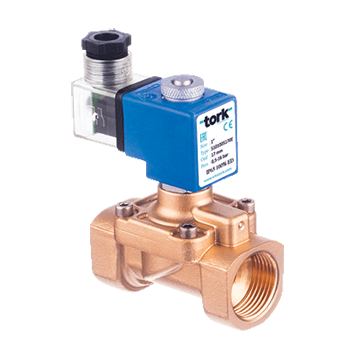

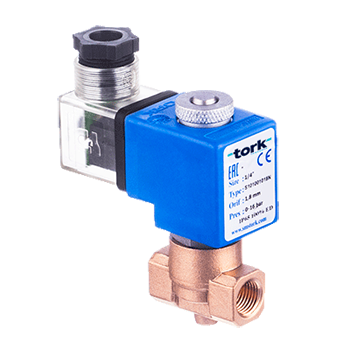

S1010 Series  ( TORK-GP) General Purpose Solenoid Valves

Application	:	Air, water, gas
Size	:	1/8" … 2" BSP (on request NPT)
Pressure	:	0,5 bar … 16 bar (0 … 16bar - 1/8"-1/4")
Tube	:	Stainless steel
Body	:	Brass
Seal	:	NBR, on request EPDM
Temperature	:	.-10°C…80 °C
Position	:	Normally Closed
Coil Voltage	:	230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC
Protection Class	:	IP65 and Exproof models

SPECIFICATION

Valve Type		Connection Size	Orifice (mm)	Pressure (bar)		KV  lt/ min	Fluid Temperature		Seal	Weight (kg)
				Min	Max		Min	Max
S1010.00.018		1/8"	1,8	0	16	1,6	-10	80	NBR	0,36
S1010.00.020		1/8"	2	0	15	2	-10	80	NBR	0,36
S1010.00.022		1/8"	2,2	0	14	2,3	-10	80	NBR	0,36
S1010.00.025		1/8"	2,5	0	12	3,2	-10	80	NBR	0,36
S1010.00.030		1/8"	3	0	10	4,6	-10	80	NBR	0,36
S1010.00.040		1/8"	4	0	9	6,4	-10	80	NBR	0,36
S1010.00.050		1/8"	5	0	7	9,2	-10	80	NBR	0,36
S1010.00.060		1/8"	6	0	5	11	-10	80	NBR	0,36
S1010.01.018		1/4"	1,8	0	16	1,6	-10	80	NBR	0,36
S1010.01.020		1/4"	2	0	15	2	-10	80	NBR	0,36
S1010.01.022		1/4"	2,2	0	14	2,3	-10	80	NBR	0,36
S1010.01.025		1/4"	2,5	0	12	3,2	-10	80	NBR	0,36
S1010.01.30		1/4"	3	0	10	4,6	-10	80	NBR	0,36
S1010.01.040		1/4"	4	0	9	6,4	-10	80	NBR	0,36
S1010.01.050		1/4"	5	0	7	9,2	-10	80	NBR	0,36
S1010.01.060		1/4"	6	0	5	11	-10	80	NBR	0,36
S1010.02		3/8"	12,5	0,5	16	48	-10	80	NBR	0,68
S1010.03		1/2"	14,5	0,5	16	70	-10	80	NBR	0,71
S1010.04		3/4"	17	0,5	16	85	-10	80	NBR	0,8
S1010.05		1"	17	0,5	16	90	-10	80	NBR	0,97
S1010.06		1 1/4"	30	0,5	12	390	-10	80	NBR	2,65
S1010.07		1 1/2"	39	0,5	12	460	-10	80	NBR	2,55
S1010.08		2"	46	0,5	12	580	-10	80	NBR	2,98

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
