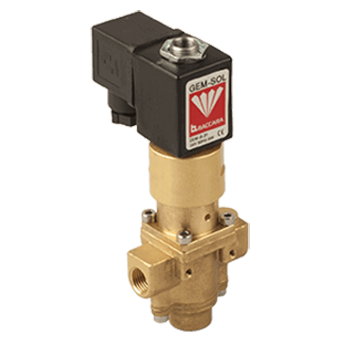

GEM-SE | General purpose 3W
Ports size: 1/4″ – 1/2″ BSP, NPT
Orifice size: 8.0, 12.0 mm
Body material: Brass

Function 3 Way General purpose
Ports size 1/4", 3/8", 1/2" BSP & NPT
Pressure range
• See table
* Min. pilot presssure : 1.5 bar
(for other, see graph)
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Main Valve:
Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Piston seal PU*
* other seals available upon request
Media Air, water, oil
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
