BACCARA

  • BACCARA Israel GEM-S | 3W NC, NO
BACCARA Israel GEM-S | 3W NC, NO

BACCARA Israel GEM-S | 3W NC, NO

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: GEM-S | 3W NC, NO BACCARA product Israel Solenoid Valve Fertilizing Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

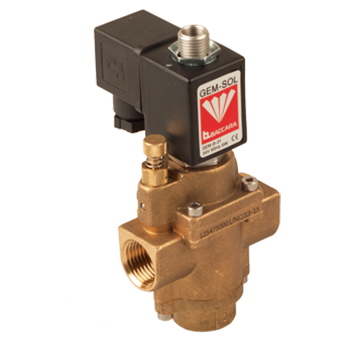

GEM-S | 3W NC, NO
Ports size: 1/4″ – 1/2″ BSP, NPT
Orifice size: 8.0, 12.0 mm
Manual override:  Slot, Push lock
Body material: Brass

Function 3 Way NC, NO
Ports size 1/4", 3/8", 1/2" BSP & NPT
Pressure range See table
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
NC : Push in lock hydraulic bypass
NO : Brass screw or finger knob
Main Valve:
Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Media Air, water, light oil
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
