  • BACCARA Israel two-way solenoid valve G65-A | 2W NC

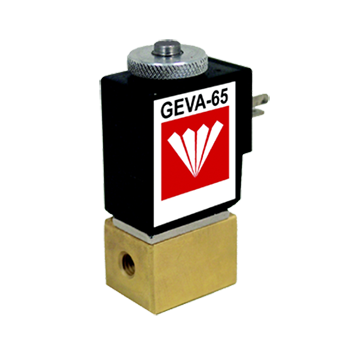

BACCARA Israel two-way solenoid valve G65-A | 2W NC

BACCARA Israel two-way solenoid valve G65-A | 2W NC

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: Two-way solenoid valve G65-A | 2W NC BACCARA Israel solenoid valve Fertilizing solenoid valve Hydraulic drive valve BACCARA controller Cylinder Air valve BACCARA globe valve
  • INQUIRY
G65-A | 2W NC
Ports size: M5, #10 UNF
Orifice size: 0.8 – 2.0 mm
Body material: Aluminium, Brass, St. St

Function 2 Way NC
Ports size M5, #10UNF
Orifice size See table
Pressure range See table
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Main Valve:
Aluminium, Stainless Steel AISI 316, Brass
Solenoid Operator
Stainless Steel AISI 300 & 400 series, Brass
Seals:
NBR, FPM (Viton®), EPDM
Media Air, water, oil
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
