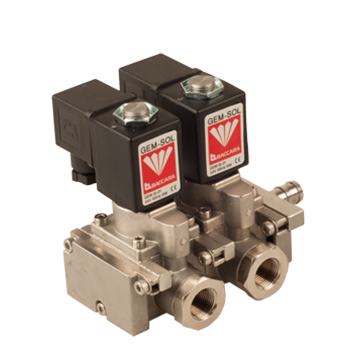

GEM-SM | Manifold 2W NC, NO
Ports size: 1/8″, 1/4″ BSP, NPT
Orifice size: 8.0, 12.0 mm
Manual override:  Slot, Knob
Body material: Brass, St.St

Function 2 Way NC, NO
Ports size 1/4", 1/2" BSP & NPT
Pressure range
See table
*Minimum pressure differential of 0.3 or 0.5
is required
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
NC/NO - Brass screw
NOa* - manual override is not available
*pressure is supplied through the base
Main Valve:
Brass
Stainless Steel AISI 316
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Assembly
• Stations attached by 3 screws
• End stations are either with ports or
plugged
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
