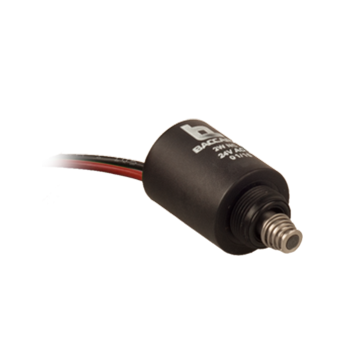

G75-O | AC/DC Operator 2W, 3W NC, NO
Orifice size: 0.8 – 3.0 mm
Tube Material: St.St
Assembly:  Screw 3/4″ UNEF to valve body.  Max. tightening torque: 2 N/m.

Function 2 Way, 3 Way NC, NO
Orifice size 2 Way : No orifice
3 Way : See table
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Housing:
Reinforced Nylon 66
Plunger & pole:
Passivated Stainless Steel AISI 430F
Rubber Seals:
EPDM
Encapsulate:
Polyurethane
Spring:
Stainless Steel AISI 300 series
Media Air, water, oil *
Threads on operator tube G1/8" or 1/8" NPT female to connect exhaust,
muffler etc
Operator assembly By manually screwing 3/4" UNEF to valve body.
• Max. tightening torque : 2 N/m
Electrical connection Lead wires 35 cm, 18 AWG (0.75mm2
)
* other lengths are available
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection class IP66
