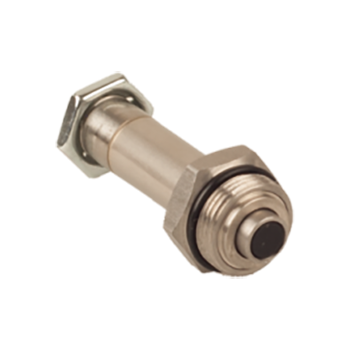

GEM-OG | Operator 3/4″ UNEF 2W, 3W NC, NO
Orifice size: 0.8 – 3.0 mm
Tube Material: St.St
Assembly: Fix the
coil with one G1/4″ hexagonal 19mm nut. Max. tightening torque: 3 N/m.
Function 2 Way, 3 Way NC, NO and Latch
Orifice size 0.8 to 3mm
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Response time 16 to 36 ms complete cycle
Materials in contact
with media
Operator:
Stainless Steel. AISI 300 & 400 series
Shading ring:
standard - Copper
upon request - silver and aluminium
Note : Operator for DC is without
shading ring and may not be used for AC
Orifice:
Stainless Steel
Spring:
Stainless Steel AISI 300 series
Latch • Optional
Media Air, gas, water, fuel, oil etc.
Threads on operator tube G1/4" male and G1/8" or 1/8" NPT female to
connect exhaust, muffler etc.
Operator assembly
By screwing 3/4"-20 UNEF-28 hexagonal
22mm to the valve body and fixing the
coil
by one G1/4" hexagonal 19mm metal or
plastic nut.
• Max. tightening torque : 3 N/m
Coil fixing Any position, can be turned 360º around the
operator.
Coil data See technical GEM-SOL
coil data
Coil voltage • Voltage and power consumption - see table
• All Baccara
coil voltages are ±10% of nominal
