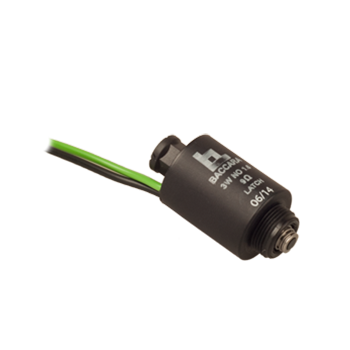

G75-O | Latch Operator 2W, 3W NC, NO
Orifice size: 2W: No orifice, 3W: 1.0 -1.6 mm
Tube Material: St.St
Function 2 Way, 3 Way NC, NO, Latch
Orifice size 2 Way : No orifice
3 Way : See table
Pressure range (bars) See solenoid valve performances
Capacitors • 4700µF for 9V DC
• 2200µF for 12V DC
Switching time 25-50 ms
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Housing:
Reinforced Nylon 66
Plunger & pole:
Passivated Stainless Steel AISI 430F
Rubber Seals:
EPDM
Encapsulate:
Polyurethane
Spring:
Stainless Steel AISI 300 series
Threads on operator tube G1/8" or 1/8" NPT female to connect exhaust,
muffler etc
Two wire operator
One
coil with exit of 2 lead wires. To pull the
plunger up, connect the black wire (-) and
the green to the (+).
Three wire operator
One
coil and an integrated electrical circuit.
To pull plunger up, pulse is given to the
red wire (-). To release the plunger, pulse is
given to the black wire (-).
Operate only by a
controller.
Electrical connection
• Lead wires 35 cm, 18 AWG (0.75mm2
)
(black/green)
• Lead wires : red, white, black for 3 wires
Voltage 9, 12V DC (
coils for other voltages available)
Standard protection class IP66
