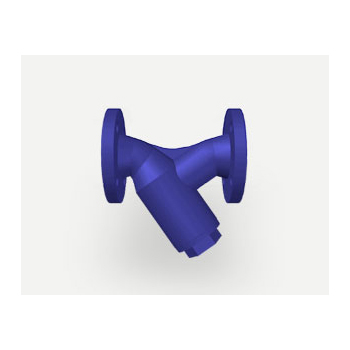

Fig33 Y type filter
Spirax Sarco Fig33 filters are Y-shaped, cast iron, flanged. Standard stainless steel filter: DN15 to DN80 are 0.8mm pore size, DN100 to DN200 are 1.6mm pore size. Other apertures and meshes and Monel alloy filters are available. A threaded hole can be drilled on the filter bonnet to connect the drain valve or drain valve as required.

Some products and services are only available in certain regions.

Spirax Sarco FIG33 filter caliber and pipe connection
DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150 and 200;
Standard flange EN1092 PN16, AS 2129 TableF;
ANSI 150 (DN15 and DN20) ANSI 125 (DN25 to DN200).

Spirax Sarco FIG33 Filter Installation
The FIG33 filter should be installed on a vertical pipe with horizontal or downward flow as indicated by the flow direction arrow on the valve body. When applied to horizontal pipes of steam or gas, the filter valve body should maintain the horizontal position, and in liquid systems, the valve body should be vertically downward. To facilitate maintenance and replacement, suitable shutoff valves should be installed upstream and downstream of the filter.

Spirax Sarco Fig33 Filter Ordering Instructions
Spirax Sarco Fig33 filter DN25, EN 1092 PN16 flange connection, 0.8mm bore stainless steel filter.
