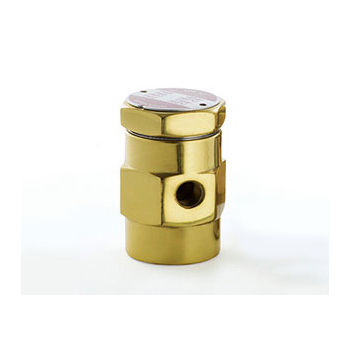

VB14 Vacuum Breaker Brass
Spirax Sarco vacuum breakers are used in vacuum removal in steam systems, which can effectively protect the equipment from being in a vacuum state when steam is condensing.

The most common application of the Spirax Sarco VB14 vacuum breaker is in process equipment such as jacketed cookers and heat exchangers. After these equipments are closed, they still contain a certain amount of steam. After the steam condenses, a vacuum is formed. The vacuum will damage the equipment, so it is necessary to install a vacuum breaker at the steam inlet of these equipments. The same can happen in steam mains and boilers.

Vacuum breakers are also commonly used on heat exchangers with temperature control to prevent the heat exchanger from losing flow. A vacuum breaker is installed at the steam inlet of the small heat exchanger where the condensed water is discharged to the atmosphere to prevent the loss of flow. When a vacuum is generated in the steam space, the vacuum breaker opens and the condensed water is discharged through the trap.

Some products and services are only available in certain regions.

Brief introduction of Spirax Sarco VB14 vacuum breaker
VB14 and VB21 vacuum breaker
VB14 is a small general purpose vacuum breaking valve, mainly used for condensing steam (steam) and liquid systems.
VB21 is a small general purpose vacuum breaking valve, mainly used for condensing steam (steam) and liquid systems.

Spirax Sarco VB14 Vacuum Breaker Installation
The Spirax Sarco VB21 vacuum breaker must be installed in a vertical position with the system connection located at the bottom of the vacuum valve. For steam systems, the vent valve must be installed at the highest point of the system to prevent the valve from being submerged by condensate.
