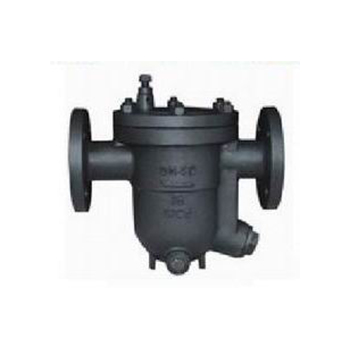

Product Name: Imported Free Float Trap Model:
Buhrer
Drive method: automatic Connection form: flange, thread
Structure: Float type Seal structure: Water seal
Pressure range: 1.6MPa-6.4MPa Nominal dia
meter: DN15-150
Common materials: WCB, 304, 316, alloy steel, etc.
Product introduction
The imported free float ball trap produced by Breer can be driven by automatic, flanged or threaded by connection, floated by structure, and water sealed by sealing structure. Pressure range PN1.6MPa-6.4MPa , The nominal dia
meter is DN15-150mm, the material can be selected from WCB, 304, 316, alloy steel and so on. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
The American-
Buhrer brand imported free float ball steam trap uses high-precision ground stainless steel hollow float balls to open or close the valve in the valve cavity as the level of the condensate changes. The structure of the trap is relatively simple, mainly consisting of a float and an automatic evacuation device. The only stainless steel hollow floating ball in the valve cavity is manufactured by high-precision grinding technology. The entire spherical surface can be used as a sealing surface. There is no concentrated wear during work and long service life. The floating ball can freely adjust the opening of the valve hole according to the change of the water level, and can continuously discharge the condensed water. The degree of subcooling is ≈0 ° C and the working efficiency is high.
There are two types of automatic evacuation devices: (within low pressure PN25) a liquid sac thermal element and a (superheated steam system) bimetal sheet.
Free floating ball steam trap advantages:
1. The only thing that rotates is a high-precision ground stainless steel float ball, which is resistant to corrosion.
2. Simple structure and easy maintenance.
3. Not affected by pressure fluctuations, continuous drainage and low noise.
4. Equipped with an automatic evacuation device, which can quickly remove air and prevent air blockage and vapor lock.
5. Small volume and large displacement.
6, drain when there is water, can speed up the system startup speed.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
