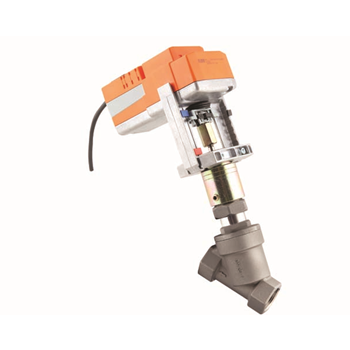

SMS-TORK Turkey EP - EOP ELECTRIC ACTUATED PISTON VALVE

SMS-TORK Turkey EP - EOP ELECTRIC ACTUATED PISTON VALVE

  • SMS-TORK product selection Product quotation Technical support After-sales service
  • SMS-TORK is a Turkish company producing industrial control valves and measuring control equipment
  • SMS-TORK is a Turkish company that manufactures industrial control valves and measurement control equipment
  • Product description: Turkey Sms-TorkSms-Tork Solenoid Valve, Sms-Tork Proportional Valve, Sms-Tork Ball Valve, Sms-Tork Butterfly Valve, Sms-Tork Gate Valve, Sms-Tork Dust Removal Valve, Sms-Tork Limit Switch, Sms-Tork Li
  • INQUIRY

GENERAL DETAILS

Application:
Water, air, steam , gas, chemicals , petrolium products, food, medicine, sanitary applications, threatment , packing machines, drinking water facilities, vacumm, oil, petrol , hyraulic oil, natural gas , acid, chill water
Technical Specifications:
Type :Motorized Piston Valve
Actuator Details
Power : 24V AC 50-60Hz/24VDC
Power Consumption : 2W
Power in out of gear :0.5W
Electric Connection :4x0.75mm2 kablo
Control Signal : 0-10VDC(Proportional models)
Working Time: 35sn/15mm
Sensitivity :%5
Torque Value : 500N, 1000N, 1500N or 2500N
Manuel Override: with 4mm allen key
Protection Class: IP54



Valve Specification:
Connection : Threaded (G (BSP) On request NPT
Position: Normally Closed / Normally Open
Working Temperature : -10 / +180°C
Max. Working Pressure :16 bar
Body : AISI 316 SS
Sealing : PTFE (on request  Viton or  EPDM)

TECHNICAL SPECIFICATION

EP 1020 Series On/Off  Motorized Angle Seat Valve
Code /Order No Connection Size  G" Ofice Size mm Working Pressure  (bar) Flow Rate  It/min Working Temperature °C Seal
Min Max Min Max
EP 1020-03 1/2" 15 0 16 98 -10 180 PTFE
EP 1020-04 3/4" 20 0 16 170 -10 180 PTFE
EP 1020-05 1" 25 0 16 305 -10 180 PTFE
EP 1020-06 1 1/4" 32 0 16 460 -10 180 PTFE
EP 1020-07 1 1/2" 40 0 16 750 -10 180 PTFE
EP 1020-08 2" 50 0 12 1050 -10 180 PTFE

EOP 1020 Series Proportional Control Motorized Angle Seat Valve
Code /Order No Connection Size  G" Ofice Size mm Working Pressure  (bar) Flow Rate  It/min Working Temperature °C Seal
Min Max Min Max
EOP 1020-03 1/2" 15 0 16 98 -10 180 PTFE
EOP 1020-04 3/4" 20 0 16 170 -10 180 PTFE
EOP 1020-05 1" 25 0 16 305 -10 180 PTFE
EOP 1020-06 1 1/4" 32 0 16 460 -10 180 PTFE
EOP 1020-07 1 1/2" 40 0 16 750 -10 180 PTFE
EOP 1020-08 2" 50 0 12 1050 -10 180 PTFE
