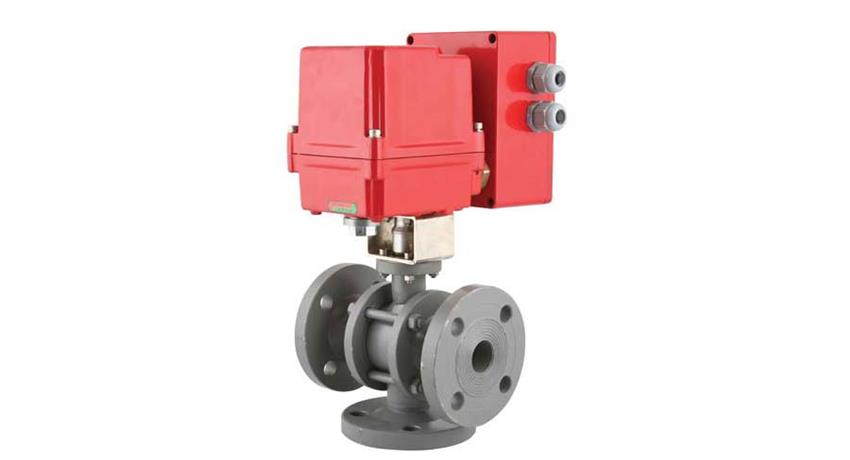

  • SMS-TORK Turkey TORK-EAV 906 ELECTRIC ACTUATED STAINLESS STEEL FLANGED BALL VALVES
  • SMS-TORK Turkey TORK-EAV 906 ELECTRIC ACTUATED STAINLESS STEEL FLANGED BALL VALVES
SMS-TORK Turkey TORK-EAV 906 ELECTRIC ACTUATED STAINLESS STEEL FLANGED BALL VALVESSMS-TORK Turkey TORK-EAV 906 ELECTRIC ACTUATED STAINLESS STEEL FLANGED BALL VALVES

SMS-TORK Turkey TORK-EAV 906 ELECTRIC ACTUATED STAINLESS STEEL FLANGED BALL VALVES

  • SMS-TORK product selection Product quotation Technical support After-sales service
  • SMS-TORK is a Turkish company producing industrial control valves and measuring control equipment
  • SMS-TORK is a Turkish company that manufactures industrial control valves and measurement control equipment
  • Product description: Turkey Sms-TorkSms-Tork Solenoid Valve, Sms-Tork Proportional Valve, Sms-Tork Ball Valve, Sms-Tork Butterfly Valve, Sms-Tork Gate Valve, Sms-Tork Dust Removal Valve, Sms-Tork Limit Switch, Sms-Tork Li
  • INQUIRY

GENERAL DETAILS

Control Type : On-off (option proportional )
Power Supply : 220 V AC, (on request  110 V AC, 24 V DC)
On-Off Time : 13 / 14 sn (50/60Hz)
Output Torque : 40 Nm,  200 Nm
Koruma Sınıfı : IP67
Ambient Temperatıre : .-20°C …70°C
Optional : LCU Local Control Unit , PIU potentiometer ,CPT Current Position Transmitter

Ball Valve Details

Body : AISI 316 SS
Connection sizes : DN15…DN100
Actuator Selection : REA 40  (DN15) , REA 60 (DN20 , DN 32), REA 80(DN40,DN50), REA 150 (DN65, DN 80) ,REA 200 (DN100)
Operation : 3/2 Way
O-ring : PTFE
Working Pressure : PN40, PN25
Working Temperature : -40°C …180°C


TORK-EAV 906 Series Electric Actuated Stainless Steel , Flanged Ball Valves, 3/2 WAY
DN Connection Sizes Code No Way Pressure Temperature ISO Connection
DN15 1/2" EAV906.15 3/2 0-40 bar -40°C …180°C F03
DN20 3/4" EAV906.20 3/2 0-40 bar -40°C …180°C F03
DN25 1" EAV906.25 3/2 0-40 bar -40°C …180°C F03 /F04
DN32 11/4" EAV906.32 3/2 0-40 bar -40°C …180°C F04 /F05
DN40 11/2" EAV906.40 3/2 0-25 bar -40°C …180°C F04 /F05
DN65 21/2" EAV906.65 3/2 0-25 bar -40°C …180°C F05
DN80 3" EAV906.80 3/2 0-25 bar -40°C …180°C
DN100 4" EAV906.100 3/2 0-25 bar -40°C …180°C


TORK-EAV 906P Series Proportional Control Electric Actuated Stainless Steel , Flanged Ball Valves
DN Connection Sizes Code No Way Pressure Temperature ISO Connection
DN15 1/2" EAV906P.15 3/2 0-40 bar -40°C …180°C F03
DN20 3/4" EAV906P.20 3/2 0-40 bar -40°C …180°C F03
DN25 1" EAV906P.25 3/2 0-40 bar -40°C …180°C F03 /F04
DN32 11/4" EAV906P.32 3/2 0-40 bar -40°C …180°C F04 /F05
DN40 11/2" EAV906P.40 3/2 0-25bar -40°C …180°C F04 /F05
DN65 21/2" EAV906P.40 3/2 0-25bar -40°C …180°C F05
DN80 3" EAV906P.40 3/2 0-25bar -40°C …180°C
DN100 4" EAV906P.40 3/2 0-25bar -40°C …180°C
