  • SMS-TORK Turkey S1015 (TORK-G.3W ) 3/2 WAY SOLENOID VALVE N.C.
  • SMS-TORK Turkey S1015 (TORK-G.3W ) 3/2 WAY SOLENOID VALVE N.C.
SMS-TORK Turkey S1015 (TORK-G.3W ) 3/2 WAY SOLENOID VALVE N.C.SMS-TORK Turkey S1015 (TORK-G.3W ) 3/2 WAY SOLENOID VALVE N.C.

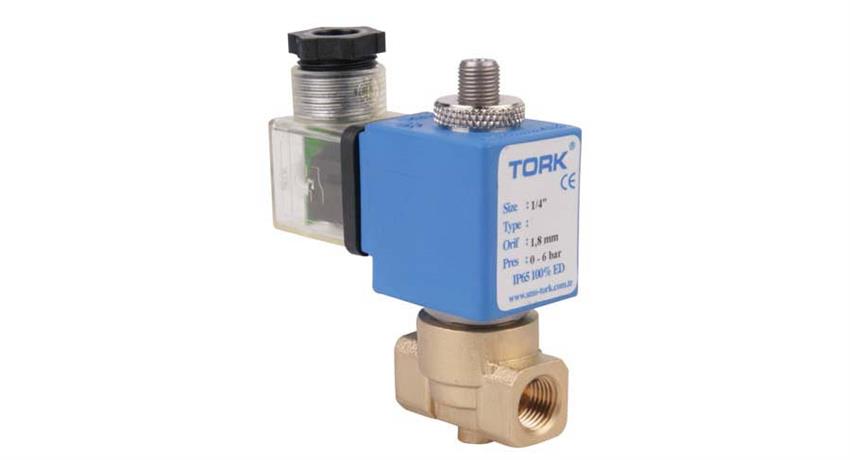

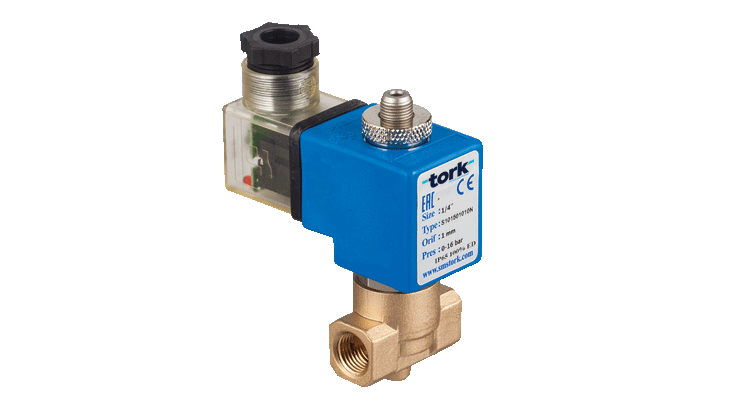

SMS-TORK Turkey S1015 (TORK-G.3W ) 3/2 WAY SOLENOID VALVE N.C.

  • SMS-TORK product selection Product quotation Technical support After-sales service
  • SMS-TORK is a Turkish company producing industrial control valves and measuring control equipment
  • SMS-TORK is a Turkish company that manufactures industrial control valves and measurement control equipment
  • Product description: Turkey Sms-TorkSms-Tork Solenoid Valve, Sms-Tork Proportional Valve, Sms-Tork Ball Valve, Sms-Tork Butterfly Valve, Sms-Tork Gate Valve, Sms-Tork Dust Removal Valve, Sms-Tork Limit Switch, Sms-Tork Li
  • INQUIRY

GENERAL DETAILS

Application : Air, Water, Gas, Pneumatic Piston valve on-off control
Pneumatic Diaphragm  Globe Valve on-off control and pneumatic systems
Size : 1/4", 1/8"
Pressure : 0…6 bar  according orifice size
Internal Parts : Stainless Steel
Body : Brass
Sealing : Viton
Temperature : -10°C…160 °C
Coil Voltage : 230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC
Production Class : P65 and Exproof  ATEX  types
Position : Normally Closed , S1015 Serie


SPECIFICATION

Types Size

Orifice  mm

Pressure  (bar)

KV   lt/ min

Fluid Temprature  °C Seal Weight  kg
Min Max Min Max
S1015.00.010 1/8" 1 0 6 -10 80 VITON 0,37
S1015.00.015 1/8" 1,5 0 6 -10 80 VITON 0,37
S1015.00.018 1/8" 1,8 0 6 -10 80 VITON 0,37
S1015.00.025 1/8" 2,5 0 3 -10 80 VITON 0,37
S1015.01.010 1/4" 1 0 6 -10 80 VITON 0,36
S1015.01.015 1/4" 1,5 0 6 -10 80 VITON 0,36
S1015.01.018 1/4" 1,8 0 6 -10 80 VITON 0,36
S1015.01.025 1/4" 2,5 0 3 -10 80 VITON 0,36
