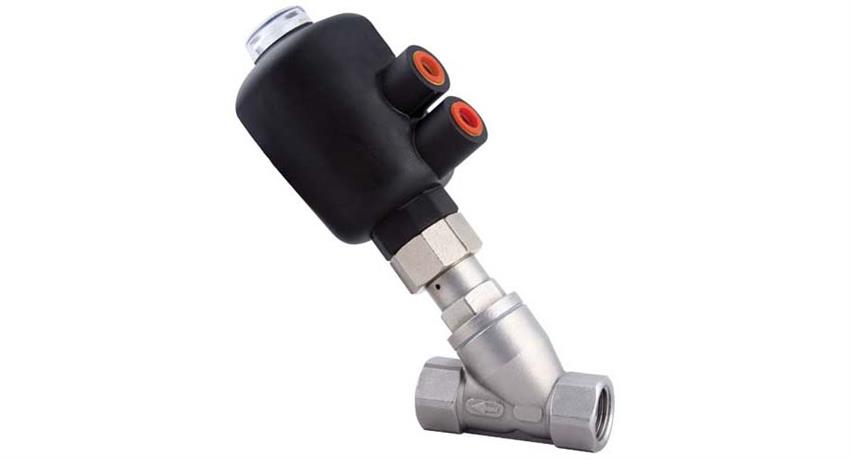

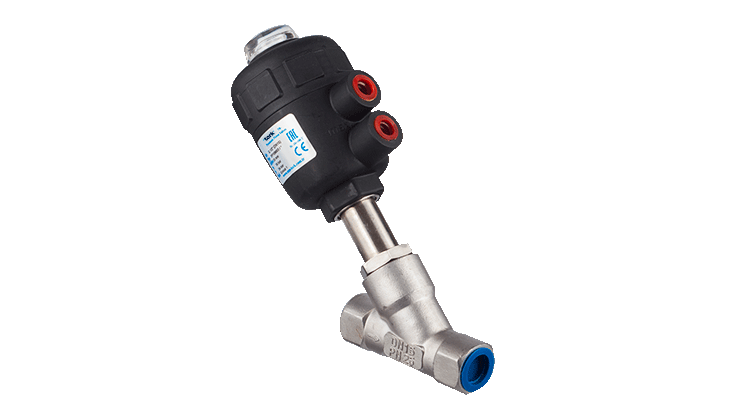

SMS-TORK Turkey TORK-PP1090 PVC PNEUMATIC ACTUATED ANGLE SEAT VALVE

  • SMS-TORK product selection Product quotation Technical support After-sales service
  • SMS-TORK is a Turkish company producing industrial control valves and measuring control equipment
  • SMS-TORK is a Turkish company that manufactures industrial control valves and measurement control equipment
  • Product description: Turkey Sms-TorkSms-Tork Solenoid Valve, Sms-Tork Proportional Valve, Sms-Tork Ball Valve, Sms-Tork Butterfly Valve, Sms-Tork Gate Valve, Sms-Tork Dust Removal Valve, Sms-Tork Limit Switch, Sms-Tork Li
  • INQUIRY

GENERAL DETAILS

Application

Water, air, steam, Gas,natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants,


Type : Pneumatic Actuated Angle Seat  Valve
Connection : Screwed G (BSP)
Function : Normally Closed, Normally Open
Working Temperature : .-10 … +120°C
Max. Operating Pressure : 16 bar
Switching Time : 30-40 ms
Viscosity of the Fluid : Max. 600mm2/s
Max. Operating Pressure in Vacuum : .-700mbar (For inlet and outlet pressure)
Material of Actuator : Fibre-glass reinforced polyamide (PAGF30)
Positioner and Switch Box can be mounted : Yes
Body : All Bodies 304 SS
