GENERAL DETAILS

Application

Water, air, steam, Gas,natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants,

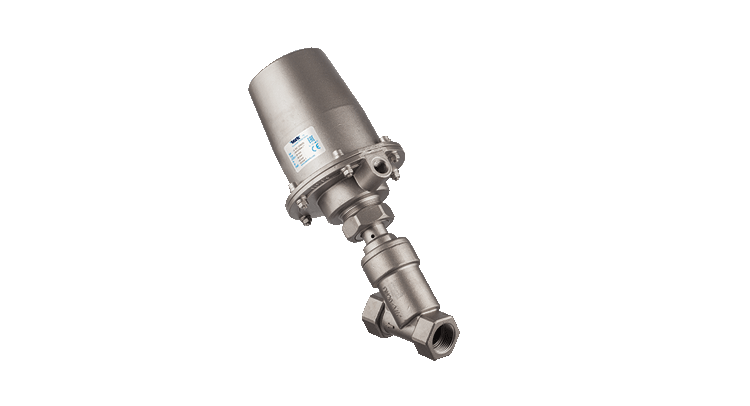

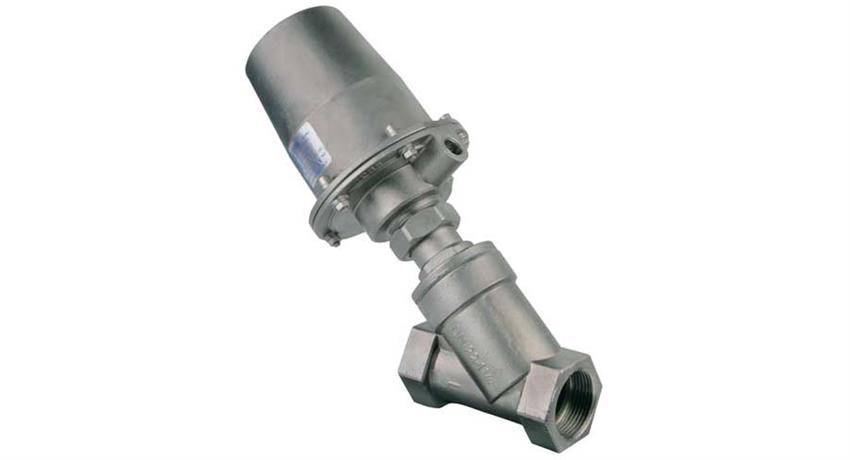

Type : Pneumatic Actuated Angle Seat, Piston Valve
Connection : Screwed G (BSP), 1/2"...1"
Function : Normally Closed
Working Temperature : .-10 … +180°C
Max. Operating Pressure : 40 bar
Recommended Control Air Supply : 4-6 bar
Air Supply Connection : 1/4" G
Body : All body AISI 316 stainless steel
Sealing Material : PTFE (optional Viton, EPDM)
On Request : NPT screwed connection
Way : 2/2 way
