GENERAL DETAILS


Application
Water, Air, Steam, Gas, natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants, Aggressive gases and liquids, Vacuum application, Oil, Petrol, Alcohol, Hydraulic liquids, Salt solutions, Organic solvents, Acids


Advantage of TORK Pneumatic Piston Valves
Less pressure drop than the globe valves
Short open-close time
High flow rate
Body and actuator in AISI 316 stainless steel, precision casting
Flanged and welding connection available on request

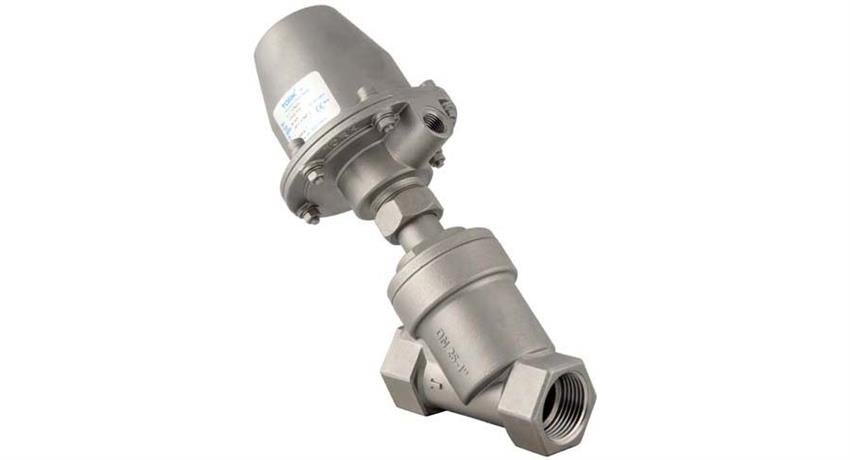

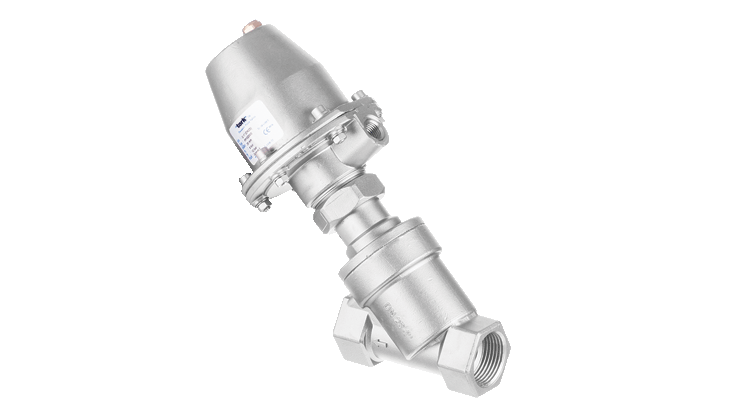

Type : Pneumatic Actuated Angle Seat, Piston Valve
Connection : Screwed G (BSP) , 1/2"...2"
Function : Normally Closed
Working Temperature : .-10 … +180°C
Max. Operating Pressure : 16 bar
Recommended Control Air Supply : 4-6 bar
Air Supply Connection : 1/4" G
Body : All body AISI 316 stainless steel
Sealing Material : PTFE (optional Viton, EPDM)
On Request : NPT screwed connection
Way : 2/2 way
