GENERAL DETAILS

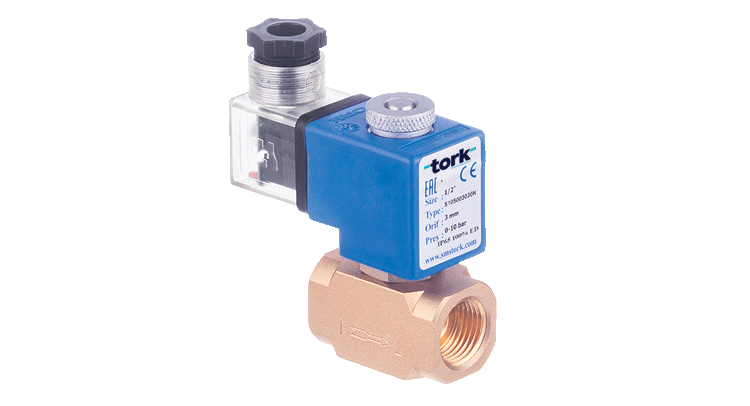

S1050 Series  ( TORK-GD) General Purpose Solenoid Valves

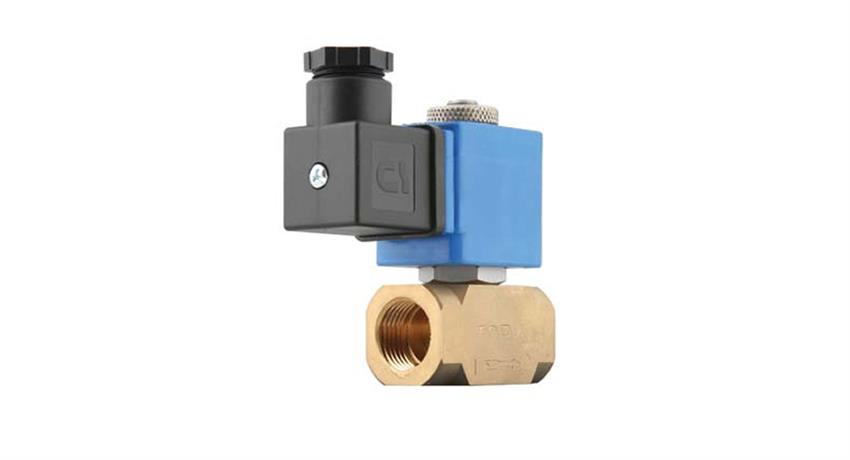

S1051 Series  ( TORK-GD) General Purpose Solenoid Valves
Application : Air, water, gas
Size : 3/8" … 1" BSP (on request NPT)
Pressure : 0 bar … 6 bar (orifice)
Tube and international part : Stainless Steel
Body : Brass
Seal : NBR, on request VITON
Temperature : .-10°C…80 °C
Position : Normally Closed (on request Normally Open)
Coil Voltage : 230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC
Protection Class : IP65 and Exproof models


SPECIFICATION

Valve Type / Order No Connection Size Orifice Size (mm) Pressure (bar) KV  lt/ min Fluid Temperature Seal Weight (kg)
Min Max Min Max
S1050.02.050 3/8" 5 0 7 9,2 -10 80 NBR 0,48
S1050.02.060 3/8" 6 0 6 11 -10 80 NBR 0,48
S1050.02.070 3/8" 7 0 5 12,4 -10 80 NBR 0,48
S1050.02.080 3/8" 8 0 3 13,5 -10 80 NBR 0,48
S1050.02.090 3/8" 9 0 2 16 -10 80 NBR 0,48
S1050.02.100 3/8" 10 0 1 19 -10 80 NBR 0,48
S1050.03.050 1/2" 5 0 7 9,2 -10 80 NBR 0,47
S1050.03.060 1/2" 6 0 6 11 -10 80 NBR 0,47
S1050.03.070 1/2" 7 0 5 12,4 -10 80 NBR 0,47
S1050.03.080 1/2" 8 0 3 13,5 -10 80 NBR 0,47
S1050.03.090 1/2" 9 0 2 16 -10 80 NBR 0,47
S1050.03.100 1/2" 10 0 1 19 -10 80 NBR 0,47


Valve Type / Order No Connection Size Orifice Size (mm) Pressure (bar) KV  lt/ min Fluid Temperature Seal Weight (kg)
Min Max Min Max
S1051.03.025 1/2" 2,5 0 10 3,2 -10 80 NBR 0,49
S1051.05.025 1" 2,5 0 10 3,2 -10 80 NBR 0,49
