GENERAL DETAILS

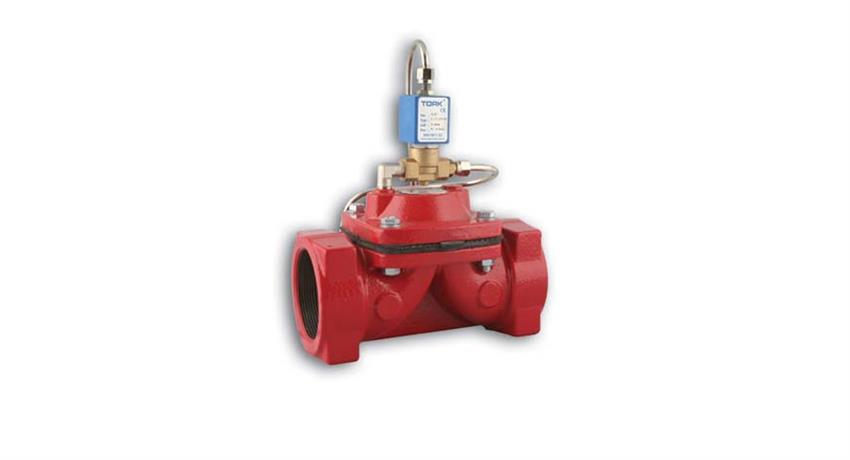

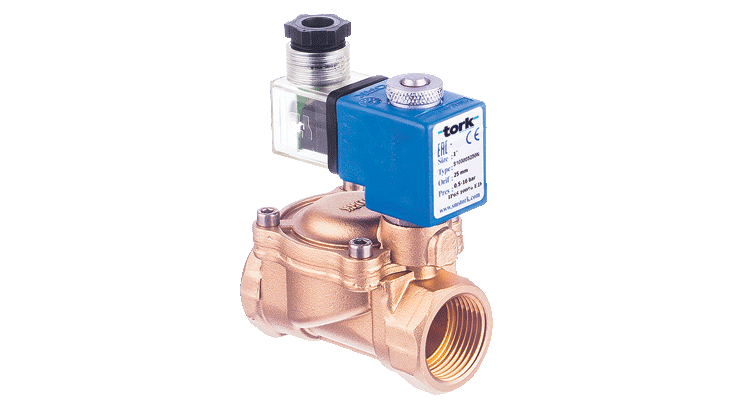

S1030 (TORK-GL) Series General Purpose Solenoid Valve ,Full Orifice , Normally Closed
S1031 (TORK-GLN) Series General Purpose Solenoid Valve ,Full Orifice , Normally Open
|
Application
|
:
|
Air, water, gas
|
|
Size
|
:
|
3/8" … 3" BSP (on request NPT)
|
|
Pressure
|
:
|
0,35 bar … 12 bar / 1,5 … 16 bar
|
|
Tube and international part
|
:
|
Stainless Steel
|
|
Body
|
:
|
Brass, steel casting or plastic
|
|
Seal
|
:
|
NBR, on request EPDM
|
|
Temperature
|
:
|
.-10°C…80 °C
|
|
Position
|
:
|
Normally Closed
|
|
Coil Voltage
|
:
|
230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
|
|
Protection Class
|
:
|
IP65 and Exproof models
|
SPECIFICATION
|
Valve Type / Order No
|
Connection Size
|
Orifice Size (mm)
|
Pressure (bar)
|
KV lt/ min
|
Fluid Temperature
|
Seal
|
Weight (kg)
|
|
Min
|
Max
|
Min
|
Max
|
|
S1030.02
|
3/8"
|
12,5
|
0,35
|
16
|
48
|
-10
|
80
|
NBR
|
0,68
|
|
S1030.03
|
1/2"
|
12,5
|
0,35
|
16
|
65
|
-10
|
80
|
NBR
|
0,64
|
|
S1030.04
|
3/4"
|
20
|
0,5
|
16
|
120
|
-10
|
80
|
NBR
|
0,66
|
|
S1030.05
|
1"
|
25
|
0,5
|
16
|
170
|
-10
|
80
|
NBR
|
0,8
|
|
S1030.06
|
1 1/4"
|
46
|
0,5
|
12
|
390
|
-10
|
80
|
NBR
|
2,65
|
|
S1030.07
|
1 1/2"
|
46
|
0,5
|
12
|
460
|
-10
|
80
|
NBR
|
2,55
|
|
S1030.08
|
2"
|
46
|
0,5
|
12
|
580
|
-10
|
80
|
NBR
|
2,98
|
|
S1030.09
|
21/2"
|
72,8
|
1
|
6
|
1266
|
-10
|
80
|
NBR
|
6
|
|
S1030.10
|
3"
|
85,4
|
1
|
6
|
2333
|
-10
|
80
|
NBR
|
10,3
|
|
Valve Type / Order No
|
Connection Size
|
Orifice Size (mm)
|
Pressure (bar)
|
KV lt/ min
|
Fluid Temperature
|
Seal
|
Weight (kg)
|
|
Min
|
Max
|
Min
|
Max
|
|
S1031.02
|
3/8"
|
12,5
|
0,35
|
12
|
48
|
-10
|
80
|
NBR
|
0,69
|
|
S1031.03
|
1/2"
|
12,5
|
0,35
|
12
|
65
|
-10
|
80
|
NBR
|
0,66
|
|
S1031.04
|
3/4"
|
20
|
0,5
|
12
|
120
|
-10
|
80
|
NBR
|
0,67
|
|
S1031.05
|
1"
|
25
|
0,5
|
12
|
170
|
-10
|
80
|
NBR
|
0,81
|
|
S1031.06
|
1 1/4"
|
46
|
0,5
|
10
|
390
|
-10
|
80
|
NBR
|
2,66
|
|
S1031.07
|
1 1/2"
|
46
|
0,5
|
10
|
460
|
-10
|
80
|
NBR
|
2,56
|
|
S1031.08
|
2"
|
46
|
0,5
|
10
|
580
|
-10
|
80
|
NBR
|
2,99
|
