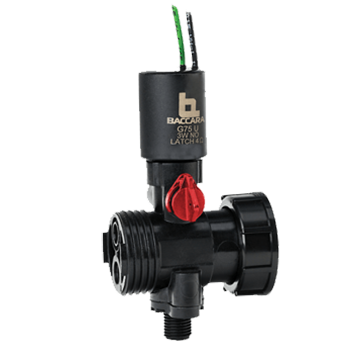

G75-VSA | Stand-alone solenoid 3W NC, NO
Ports size: 1/8″ BSPT, NPT
Orifice size: 1.8 mm
Manual override:  Plastic
Body material: Plastic (Reinforced Nylon & POM)

Function 3 Way NC, NO
Ports size 1/8” BSPT & NPT
Orifice size 1.8 mm
Pressure range 0 to 8 bar
Switching time 30-50 ms
Temperature range Fluid : 0ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic (Reinforced Nylon)
Main Valve:
Plastic (Reinforced Nylon & POM)
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Mounting Lock nut on the bottom COM port
Manual override 3 positions latch : Auto, Close, Open
Media Air, water
Coil voltage Latch
Standard protection class IP66
