  • BACCARA Israel G75-A3P | 1/8” Latch 2W, 3W NC, NO
BACCARA Israel G75-A3P | 1/8” Latch 2W, 3W NC, NO

BACCARA Israel G75-A3P | 1/8” Latch 2W, 3W NC, NO

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: G75-A3P | 1/8” Latch 2W, 3W NC, NO BACCARA product Israel Solenoid Valve Fertilizing Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

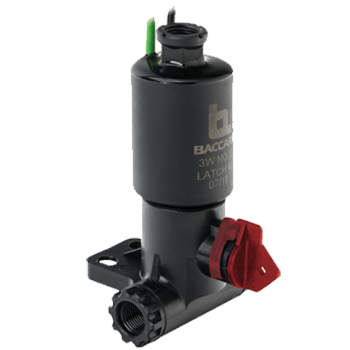

G75-A3P | 1/8” Latch 2W, 3W NC, NO
Ports size: 1/8″ BSP, NPT
Orifice size: 2.6 mm
Manual override:  Plastic
Body material: UV Stabilized – Reinforced Nylon 6 30% GF

Function 2 Way NC, 3 Way NC, NO
Ports size 1/8” BSP & NPT
Orifice size 2.6 mm
Pressure range NC (2 Way, 3 Way) : 10 bar
NO (3 Way) : 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : 10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic
Main Valve:
UV Stabilized - Reinforced Nylon 6 30% GF
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR
Mounting 2 x Ø6 mm holes
Manual override 3 positions (Open/Auto/Close)
Media Air, water
Coil voltage Latch
Switching time 40-60 msec
Electric connection 22AWG cable
Standard protection class IP66
