BACCARA

  • BACCARA Israel GEM-BL | Latch Coil
BACCARA Israel GEM-BL | Latch Coil

BACCARA Israel GEM-BL | Latch Coil

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: GEM-BL | Latch Coil BACCARA product Israel Solenoid Valve Fertilizing Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

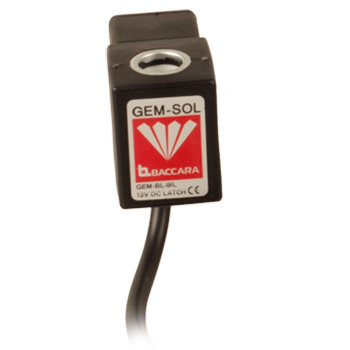

GEM-BL | Latch Coil
Coil winding insulation: H 180°C
Assembly: In any position
Fixing:  One nut G1/4″ hexagonal 19mm

Coil winding insulation H 180ºC
Temperature range Coil : -20ºC to 150ºC | Ambient : -20ºC to 70ºC
Electrical connection • AMP pins, DIN 46242, 2 poles + 1 earth
• 2 flying leads, 18 AWG (0.75mm2
), 300 mm length
Connector target='_blank'>Connector
• DIN 43650
• PG9 or 1/2" NPT
* Max. tightening torque for the connector
screw : 0.5 Nm
Assembly In any position
Coil fixing One nut G1/4" hexagonal 19mm
Typical pulse time 30~50ms
Impregnation Optional
Standard / Certification CE
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
