BACCARA

  • BACCARA Israel G80-BW | Wide Coil
BACCARA Israel G80-BW | Wide Coil

BACCARA Israel G80-BW | Wide Coil

  • BACCARA has become a leader in the market for automated product manufacturing and product specialization
  • Baccara Geva Ltd Automation Control was established in 1964 in Kibbutz GEVA in Jezreel Valley, Israel
  • Baccara air valves, cylinders, solenoid valves and nylon tubes for industrial, agricultural and irrigation applications
  • BACCARA solenoid valve Air valve Cylinder, GEM-SOL, GEVA 80, GEVA 75, GEVA 65, GEVA 60, cut-off cylinder operating valve
  • Product description: G80-BW | Wide Coil BACCARA product Israel Solenoid Valve Fertilizing Solenoid Valve Hydraulic Drive Valve BACCARA Controller Cylinder Air Valve BACCARA Globe Valve
  • INQUIRY

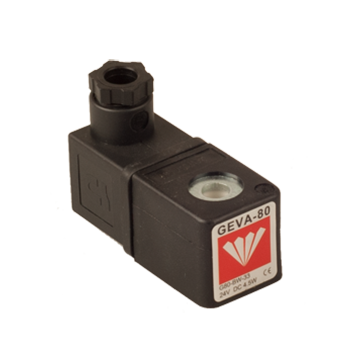

G80-BW | Wide Coil
Coil winding insulation: F 155°C
Assembly: On a valve, 4 positions at 90°
Fixing:  On G80 operator with M8x0.75 nut

Coil winding insulation F 155ºC
Temperature range Coil : -20ºC to 120ºC | Ambient : -20ºC to 50ºC
Construction in accordance with EN 60204.1
Duty cycle * 100% ED
Electrical connection AMP 6.3x0.8, DIN 46242, 2 poles + 1 earth
Connector target='_blank'>Connector
• DIN 46242
• Fixture : M3 screws, 2 positions at 180º
* Max. tightening torque for the connector
screw : 0.5 Nm
Assembly On a valve, 4 positions at 90º
Coil fixing On a G80 operator with M8x0.75 nut
Impregnation Optional
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ±10% of nominal
Standard protection class IP65 with connector
