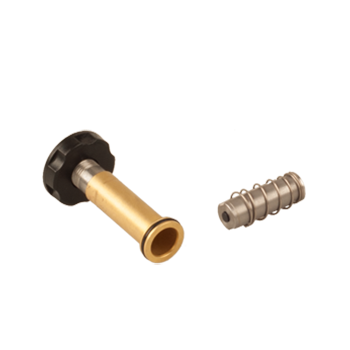

G80-O | Operator 2W, 3W NC, NO
Orifice size: 1.0 – 1.6 mm
Tube Material: Brass, St.St
Assembly: Fix the
coil with one M8 nut. Max. tightening torque: 2 N/m.
Function 2 Way, 3 Way NC, NO
Orifice size 1, 1.2, 1.6mm
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Response time 5 to 12 ms
Materials in contact
with media
Operator:
Brass or Stainless Steel. AISI 300 & 400
series
Shading ring:
Copper
Note : Operator for DC is without shading ring
and may not be used for AC
Orifice:
Stainless Steel
Spring:
Stainless Steel AISI 300 series
Media Air, inert gases, water *
Threads on operator tube M8x0.75 male and M5 or #10UNF female to
connect exhaust, muffler etc.
Operator assembly Fix the
coil with one M8 nut.
Max. tightening torque : 2 N/m
Coil fixing On a G80 operator with M8x0.75 nut
Coil data See technical G80
coil & wide
coil data
Coil voltage • Voltage and power consumption - see table
• All Baccara
coil voltages are ±10% of nominal
