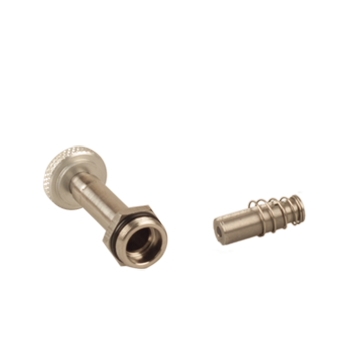

G65-OM | M12 Operator 2W, 3W NC
Orifice size: 2W: No orifice,  3W: 08 – 1.2 mm
Tube Material : Brass, St.St
Assembly:  Fix the coil with one MF6 x 0.5 nut.  Max. tightening torque: 2 N/m.

Function 2 Way, 3 Way NC
Orifice size 2 Way : No orifice
3 Way : 0.8, 1.0, 1.2 mm
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Response time 5 to 12 ms
Materials in contact
with media
Operator:
Brass or Stainless Steel. AISI 300 & 400
series
Shading ring:
Copper
Note : Operator for DC is without shading
ring and may not be used for AC
Orifice:
Stainless Steel
Spring:
Stainless Steel AISI 300 series
Media Air, oil, water*
Threads on operator tube MF6x0.5
Operator assembly
Insert operator into cavity, tighten it by the
flange and the two M2.5 screws. Fix the coil
with one MF6x0.5 nut.
Max. tightening torque : 2 N/m
Coil fixing On a G65 operator with MF6X0.75 NUT
Coil data See technical G65 coil data
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ±10% of nominal
