YPC product Korea YSC, YSF, YSK Model Accessories Cartridge Valve Pneumatic Valve Mechanical Valve Mounting Valve Cylinder Solenoid Valve

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF1101 two-position dual control 3.6mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1200 two-position dual control 3.6mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1303 three-position Close Center 3.0mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1403 Exhaust Center 3.0mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1503 Pressure Center 3.0mm2 M5 AC110V, AC220V, DC12V, DC24V
MF1500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF2101 two-position dual control 12.6mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2200 two-position dual control 12.6mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2303 three-position Close Center 9mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2403 Exhaust Center 9mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2503 Pressure Center 9mm2 1/8 AC110V, AC220V, DC12V, DC24V
MF2500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF3101 two-position dual control 13.5mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF3200 two-position dual control 13.5mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF3303 three-position Close Center 11.0mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF3403 Exhaust Center 11.0mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF3503 Pressure Center 11.0mm2 1/8 AC110V, AC220V, DC12V, DC24V
MF3500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF4101 two-position dual control 19mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4200 two-position dual control 19mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4303 three-position Close Center 11.5mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4403 Exhaust Center 11.5mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4503 Pressure Center 11.5mm2 1/4 AC110V, AC220V, DC12V, DC24V
MF4500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF5101 two-position dual control 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5200 two-position dual control 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5303 three-position Close Center 30mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5403 Exhaust Center 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5503 Pressure Center 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
MF5500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF6101 two-position dual control 65mm2 1/2 AC110V, AC220V, DC12V, DC24V
SF6200 two-position dual control 65mm2 1/2 AC110V, AC220V, DC12V, DC24V
SF6303 three-position Close Center 50mm2 1/2 AC110V, AC220V, DC12V, DC24V
SF6403 Exhaust Center 50mm2 1/2 AC110V, AC220V, DC12V, DC24V
SF6503 Pressure Center 50mm2 1/2 AC110V, AC220V, DC12V, DC24V
MF6500-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF1601 N.C (normally closed) 3.6mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1701 N.C (normally closed) 3.6mm2 M5 AC110V, AC220V, DC12V, DC24V
SF1800 two-position dual control 3.6mm2 M5 AC110V, AC220V, DC12V, DC24V
MF1300-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF2601 N.C (normally closed) 12.6mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2701 N.C (normally closed) 12.6mm2 1/8 AC110V, AC220V, DC12V, DC24V
SF2800 two-position dual control 12.6mm2 1/8 AC110V, AC220V, DC12V, DC24V
MF2300-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF4601 N.C (normally closed) 19mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4701 N.C (normally closed) 19mm2 1/4 AC110V, AC220V, DC12V, DC24V
SF4800 two-position dual control 19mm2 1/4 AC110V, AC220V, DC12V, DC24V
MF4300-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF5601 N.C (normally closed) 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5701 N.C (normally closed) 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
SF5800 two-position dual control 36mm2 3/8 AC110V, AC220V, DC12V, DC24V
MF5300-00 ᅳ ᅳ ᅳ ᅳ

Model name Action mode Effective cross-sectional area Take-up diameter Rated voltage Download information
2D 3D PDF
SF6601 N.C (normally closed) 65mm2 1/2 AC110V, AC220V, DC12V, DC24V
SF6701 N.C (normally closed) 65mm2 1/2 AC110V, AC220V, DC12V, DC24V

SF6800 two-position dual control 65mm2 1/2 AC110V, AC220V, DC12V, DC24V

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.

Contact: Peng gong
Q Q: 2030185432
Mobile: 18918462396(WeChat same number - 24 hours service)
Landline: 021-59718851
E-mail :kunage@126.com

YPC

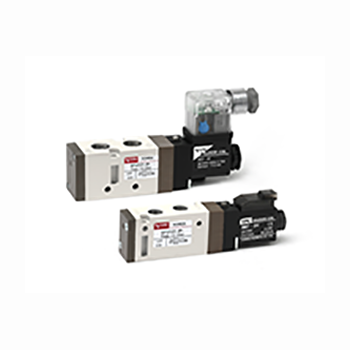

YPC Korea Industrial Solenoid Valve SF1000, SF2000, SF3000, SF4000, SF5000, SF6000
