Model name Use temperature Use pressure Take-up port Use fluid Download data
2D 3D PDF
YSC02-1 -5～60°C When not freezing 0.05~1.0Mpa 1/8 Air, inert gas
YSC02-2 -5～60°C When not freezing 0.05~1.0Mpa 1/4 air, inert gas
YSK02-1 -5～60°C When not freezing 0.05~1.0Mpa 1/8 Air, inert gas
YSK02-2 -5～60°C When not freezing 0.05~1.0Mpa 1/4 air, inert gas
YSK04-3 -5～60°C When not freezing 0.05~1.0Mpa 1/2 Air, inert gas
YSK04-4 -5～60°C When not iceing 0.05~1.0Mpa 3/4 Air, inert gas
YSK05-6 -5～60°C When not freezing 0.05~1.0Mpa 1 Air, inert gas
YSK06-10 -5～60°C When not freezing 0.05~1.0Mpa 1/4 air, inert gas
YSF01 -5～60°C When not freezing 0.05~1.0Mpa 1/8 Air, inert gas
YSF02 -5～60°C When not iceing 0.05~1.0Mpa 1/4 air, inert gas
YSF03 -5～60°C When not freezing 0.05~1.0Mpa 3/8 Air, inert gas
YSF04 -5～60°C When no ice is formed 0.05~1.0Mpa 1/2 Air, inert gas
YSC Series Product Order Format열기
사진
Accessories

Model Name Specification Pipe Diameter Pipeline Download Information
2D 3D PDF

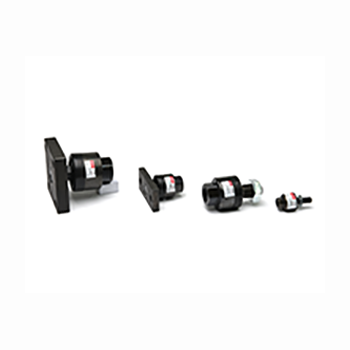

YJ-S screw type floating joint Ø10~Ø160 standard
YJ-F flanged floating joint Ø10~Ø160 rim

Model name Application Contact Load voltage Load current Download data
2D 3D PDF
D-A54K Drawbar Cylinder Automatic Switch With contacts, 2-wire DC5V~AC220V 5~50mA
D-A54X Pull rod cylinder automatic switch No contact, 3-wire DC5V~AC220V 5~50mA
D-A54K-F Drawbar Cylinder Automatic Switch With contacts, 2-wire DC5V~AC220V 5~50mA
D-A54X-F Drawbar Cylinder Automatic Switch No contact, 3-wire DC5V~AC220V 5~50mA
D-MB-00 ᅳ ᅳ ᅳ ᅳ
D-AB-00 ᅳ ᅳ ᅳ ᅳ
D-A94K thin cylinder automatic switch with contacts, 2-wire DC5V~AC220V 5~50mA
D-A94X Thin Cylinder Automatic Switch No Contact, 3-Wire DC5V~AC220V 5~50mA
D-A94K-F Thin Cylinder Automatic Switch With contacts, 2-wire DC5V~AC220V 5~50mA
D-A94X-F Thin Cylinder Automatic Switch No Contact, 3-Wire DC5V~AC220V 5~50mA
D-C75K round cylinder automatic switch with contacts, 2-wire DC5V~AC220V 5~50mA
D-C75X round cylinder automatic switch No contact, 3-wire DC5V~AC220V 5~50mA
D-C75K-F round cylinder automatic switch with contacts, 2-wire DC5V~AC220V 5~50mA
D-C75X-F round cylinder automatic switch No contact, 3-wire DC5V~AC220V 5~50mA
D-SB-00 ᅳ ᅳ ᅳ ᅳ

Model name Use temperature Use pressure Take-up port Use fluid Download data
2D 3D PDF
YC -5～60°C does not freeze when 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YF -5～60°C does not freeze when 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YSE -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YU -5～60°C does not freeze when 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YT -5～60°C does not freeze when 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YUU -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YH04-W -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YH08-W -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YH10-W -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YH12-W -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
YH16-W -5～60°C does not freeze 0.05~1.0Mpa M5, 1/8, 1/4, 3/8, 1/2 air, inert gas
FITTING Series Product Order Format열기

Model name Filter element Effective cross-sectional area Take-up caliber Silence effect (db) Download data
2D 3D PDF
AS-00 synthetic resin 15~200mm2 1/8~3/4 25 or more
ASS-00 BC sintered metal body 15~200mm2 1/8~3/4 25 or more

ANS-00 synthetic resin 160~960mm2 3/4~2 25 or more

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
