Code Type Valve Position Function Structure Form Flow ()

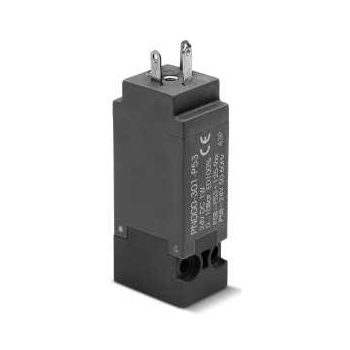

PN000-301-P53 direct-acting solenoid valve 3/2 NC cut-off
PN000-301-P54 direct-acting solenoid valve 3/2 NC cut-off
PN000-301-P56 direct-acting solenoid valve 3/2 NC cut-off
PN000-301-P57 direct-acting solenoid valve 3/2 NC cut-off

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
Kv (l/min)
Working pressure
working temperature
medium
Response time (ISO 12238)
Installation position: two-position tee, normally closed [NC]
Cut-off Form
Install screw on valve plate
0.8 mm
12 Nl/min
Zero point one nine
0_10 bar
0+50 degree C
Filtered compressed air (filter accuracy level conforms to ISO 8573-15.4.4) or inert gas
Open < 10 ms, close < 15 ms
Arbitrarily

Material in contact with media
valve body
Sealing element
Engineering Plastics for Internal Parts
PU, NBR (Fluororubber can be supplied as required)
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection Level 24 ____________. 205 V DC
+ 10%
2W - 1W (only 24 V DC)
100% continuous work
Socket (DIN 43650, Class C, 9.4 mm)
IP65 (with socket)

Special types of products can be customized as required
