Nominal Diameter () Valve Position Function of Code Type

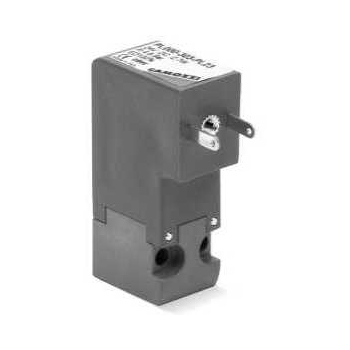

PL000-303-PL23 Direct-acting solenoid valve 1,53/2 NC
PL000-503-PL23 direct-acting solenoid valve 1,5 two-way three-way (NC, electrical interface direction rotation 180 degrees)
PL000-306-PL23 Direct-acting solenoid valve 1,53/2 NC
PL000-506-PL23 direct-acting solenoid valve 1,5 two-way three-way (NC, electrical interface direction rotation 180 degrees)

Aerodynamic parameters
Valve position function
Operation mode
Installation mode
Nominal diameter
Nominal flow
Kv (l/min)
Working pressure
working temperature
medium
response time
Installation position: two-position tee, normally closed [NC]
Cut-off Form
Install screw on valve plate
1.5 mm
35 Nl/min (aria @ 6 bar P 1 bar)
Zero point five four
- 0.9_3... 8 bar
0+50 degree C
Filtered compressed air (filter accuracy level conforms to ISO 8573-15.4.4) or inert gas
Open < 10 ms, close < 15 ms
Arbitrarily

Material in contact with media
valve body
Sealing element
Engineering Plastics for Internal Parts
NBR, FKM
Stainless steel

Electrical parameters
Voltage
Voltage tolerance
Power consumption
Work cycle
Electrical connection
Protection level 24 V DC - 12 V DC (other voltage can be provided as required)
+ 10%
2.7 W
100% continuous work
Socket (in accordance with DIN 43650 standard, Class C, pin spacing 9.4 mm)
IP65 (with socket)

Special types of products can be customized as required
