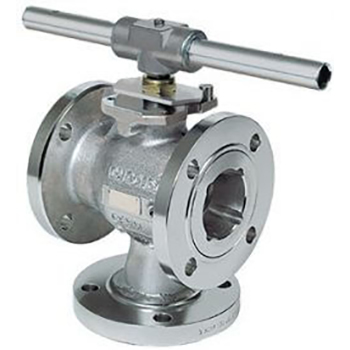

Diverter valve DN15-DN200 D31X/D32X D31P/D32P series

Diverter valve DN15-DN200 D31X/D32X D31P/D32P series

  • Habonim product products provide professional solutions for the most demanding industries
  • Oil, Gas, Chemical, Petrochemical, Pharmaceutical, Mining, Trunnion, Cryogenic, High Pressure
  • We create custom valves, manifolds and special solutions to meet the most stringent requirements of extreme temperature, high pressure, corrosive and abrasive applications
  • Product description: Diverter valves are primarily used to separate or combine process streams, or to switch media between different process equipment, such as pumps, filters, or entire pipelines. The diverter valve provi
  • INQUIRY
Technical overview
D47/S47 Series Bottom or side entry, 3-piece diverter valve (standard and full channel)
Size range ½" - 2" (DN15 - DN50)
Pressure Range ANSI Class 600 | Vacuum 10-6 Tor to 103 bar (1500 psi)
Size range 2½"-6" (DN65 - DN150)
Pressure Range ANSI Class 300 | Vacuum 10-6 Tor to 50 bar (725 psi)
Connection method Threaded, welded, flanged
D31/D32/S31/S32 Series Bottom or Side Entry, Diverter Flange Valves (Standard Ports)
Size range ½" - 8" (DN15 - DN200)
Pressure Range ANSI Class 150/300 | Vacuum 10-6 Tor to 20 bar/50 bar (290 psi /725 psi)
Connection method Welded, threaded, flanged
Temperature range -60 °C to +230 °C (-76 °F to +446 °F)
Material Stainless Steel A351 CF8M/CF3M,A479 316/316L, Alloy C22, alloy C276 and more
Operation Lever or gear operation, pneumatic or electric
Applications Steam, Thermal Fluids, Chlorine, Ammonia, Sour Gas, Chemical, Petrochemical, Oil & Gas, Energy, Pharmaceutical, Food & Beverage
Compliance Standards
Factory Certification ISO 9001-2015 Quality Management System
Valve Design and Testing ANSI B16.34, API 6D / ISO 14313 ISO 17292 Valve Design
ANSI B1.20.1 NPT - National Pipe Taper Thread
EN 10226-1, ISO 7-1 JIS B0203 BSPT - British Standard Tapered Pipe Thread
DIN 3852 BSPP
ANSI B16.11 EN 12760 Socket Weld End Connections
ANSI B16.25 EN12627-4 Butt Weld End Connections (Schedule 5, 10, 40, 80)
ANSI B16.5, EN 1092 Pt 1&2 Flange Dimensions
ANSI B16.10 EN 558 Face to Face Dimensions
NACE MR-0175, ISO 15156-1/2/3 Materials used in H2S-containing environments in oil and gas production
EN 12266-1, API 598 Testing of Metallic Valves - Pressure Testing, Test Procedures and Acceptance Criteria.
Certification ISO 15848-1 Industrial Valves - Measurement, Testing and Qualification Procedures for Fugitive Emissions /td>
PED 2014/68/EU Module H Pressure Equipment Directive
Pressure Equipment Directive Equipment and Protection Systems for Use in Potentially Explosive Atmospheres (Optional for Actuators Only) (Optional for Actuators Only)
IEC 61508-2 SIL 2/3 Safety Integrity Level - Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems ((Optional for Execution Units only))
Document EN 10204 2.2 / 3.1 / 3.2 Metallic Materials - Inspection Document Type
