Habonim

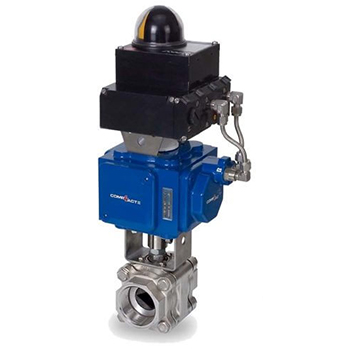

  • Regulating valve Three flap product DN15-DN100 N47 series
Regulating valve Three flap product DN15-DN100 N47 series

Regulating valve Three flap product DN15-DN100 N47 series

  • Habonim product products provide professional solutions for the most demanding industries
  • Oil, Gas, Chemical, Petrochemical, Pharmaceutical, Mining, Trunnion, Cryogenic, High Pressure
  • We create custom valves, manifolds and special solutions to meet the most stringent requirements of extreme temperature, high pressure, corrosive and abrasive applications
  • Product description: Based on floating ball valve technology, the Habonim high pressure valve range is designed for increased durability and reliability and is designed for pressures up to ANSI Class 2500 (414 bar / 6000
  • INQUIRY
Technical overview
Size range ¼"-8" (DN8-DN200)
Series Range 28 Series - ANSI B16.34 class 2500 (wall thickness), size ¼”-8”(DN8-DN200)
Series 27 - ANSI B16.34 class 2500 (wall thickness), size ¼”-2”(DN8-DN50) ANSI B16.34 class 1500 (wall thickness), size 2½”-8”(DN65-DN200)
Series 24 - Class 2500, size ¼”-1½”(DN8-DN40)
Series 95 - Trunnion Class 1500 (up to 12”)
Series 96 - Trunnion Class 2500 (up to 8”)
Temperature range -60 °C to +260 °C (-76 °F to +500 °F)
Material Stainless Steel 316/316L, Carbon Steel ASTM A350 LF2, C.St A105 and more.
Connection method Threaded, welded, flanged
Compliance Standards
Factory Certification ISO 9001-2015 Quality Management System
ANSI B16.34, API 6D / ISO 14313, ISO 17292 Valve Design
ANSI B1.20.1 NPT - National Pipe Taper Thread
DIN 3852 BSPP - British Standard Paralell Pipe
NACE MR-0175, ISO 15156-1/2/3 Grade for S-containing environments in H2 oil and gas production
EN 12266-1, API 598 Testing of Metallic Valves - Pressure Testing, Test Procedures and Acceptance Criteria. /td>
API 607, ISO 10497 Valve Testing - Fire Type Testing Requirements
(Hebrew) הסמכות ISO 15848-1 ndustrial valves - measurement, test and qualification procedures for fugitive emissions
Certification PED 2014/68/EU Module H Pressure Equipment Directive
ATEX 2014/34/EU Equipment and protective systems for use in potentially explosive atmospheres (optional for actuators only) ((optional for actuators only))
IEC 61508-2 SIL 2/3 Safety Integrity Level - Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems ((Optional for Execution Units only))
Document EN 10204 2.2 / 3.1 / 3.2 Metallic materials - Types of inspection documents
