Imported pneumatic low temperature control valve
Imported pneumatic cryogenic control valve product overview

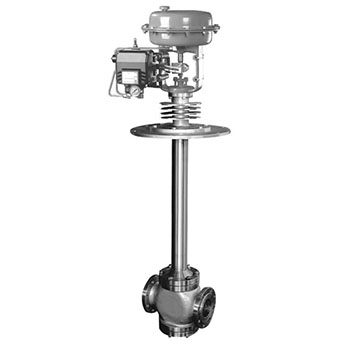

The pneumatic low-temperature control valve imported by YLOK from the United States is a deformed product of single-seat and double-seat control valves. It is different from the normal temperature regulating valve in that it adopts a long-necked upper valve cover to make the packing work at normal temperature. It is suitable for the adjustment of medium (such as liquid oxygen, liquid nitrogen, etc.) under the low temperature and strong state of -60～-250℃. To ensure the accuracy of adjustment, a valve positioner must be used.
Working principle of imported pneumatic low temperature control valve
Imported pneumatic low-temperature control valve consists of two parts: pneumatic membrane actuator and low-temperature resistant single-seat and double-seat valves. The signal pressure from the regulator is input into the air chamber of the pneumatic membrane actuator to generate thrust, and the valve core is driven by the connecting rod. The change of the valve core position changes the flow cross-sectional area of the valve and realizes the adjustment of the medium flow.
Technical parameters of imported pneumatic cryogenic control valve
Valve body form: straight-through casting ball valve
Nominal diameter: DN25～300mm
Nominal pressure: PN1.6, 2.5, 4.0, 6.4MPa
Flange standards: GB/T9113, JB/T79
Connection form: flange (FF RF RTJ), welding (SW BW), thread (applicable within 1")
Valve cover form: low temperature type -10～-196℃, ultra low temperature type -196～-250℃
Gland type: bolt compression type
Sealing packing: V-type PTFE packing, impregnated polytetrafluoroethylene asbestos packing, asbestos textile packing, graphite packing
Trim
Spool form: single seat, cage, sleeve spool
Flow characteristics: linear, equal percentage
Executing agency and attachments, function form
Actuator type: ZHA/B multi-spring film actuator
Actuator model: ZHA/B-22 ZHA/B-23 ZHAB-34 ZHA/B-45 ZHA/B-56
Effective area (cm2): 350 350 560 900 1400
Stroke (mm): 10, 16 25 40 40, 60 100
Spring range (KPa): 20～100 (standard), 20-60, 60-100, 40-200, 80-240
Diaphragm material: rubber clip nylon cloth, ethylene propylene rubber clip nylon cloth
Air supply pressure: 140～400KPa
Air source interface: RC1/4"
Environment temperature: -30～+70℃
Available accessories: positioner, air filter pressure reducer, position valve, travel switch, valve position transmitter, handwheel mechanism, etc.
Action form: air-to-close type (B)—valve position open when losing air (FO); air-to-open type (K)—valve position closed when losing air (FC)
