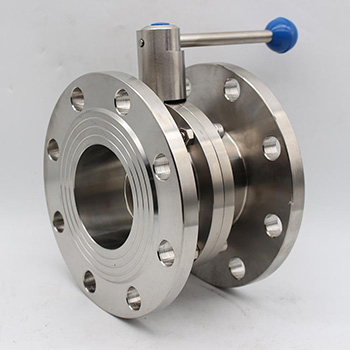

Imported sanitary flange butterfly valve
Overview of imported sanitary flanged butterfly valve products:
The American YLOK imported sanitary flange butterfly valve is a kind of butterfly valve, which is a food machinery fitting, used for small-caliber products. The circular butterfly plate that rotates with the valve mandrel is used for opening and closing to realize the activation action. It is mainly used as a cut-off valve. It can also be designed to have the function of adjustment or segment valve and adjustment. At present, butterfly valves are used in low pressure large and medium diameter pipelines The use of the Internet is increasing.
Features of imported sanitary flange butterfly valve:
1. Precision turning valve body of high-precision CNC lathe, beautiful appearance;
2. The detachable sealing ring eliminates the trouble of changing the rubber and cannot guarantee its performance;
3. The valve stem is inlaid with nylon bushings, which reduces the friction and makes the opening flexible and easy;
4. The steel parts are made of stainless steel, and the rubber is made of food rubber, which has high sanitary quality;
5. The diameter of the valve body is equal to the inner diameter of the pipe, with large flow and small resistance, no dead angles, and no material accumulation;
6. The handle adopts pull type and pull type, which can withstand large operating torque and is not easy to be broken;
7. The opening and closing range is 0~90 degrees, which can be fixed at the position every 15 degrees. It is adjustable and opens and closes quickly;
8. It adopts detachable valve body connection, simple structure and convenient maintenance;
9. It reaches the sanitary standard, the surface is bright and not sticky, and there is no burr and prick;
Performance range of imported sanitary flange butterfly valve:
Specification: DN15～DN200mm
Connection form: flange type
Department: Sanitary Butterfly Valve Series
Standards: ISO, DIN, IDF, SMS, 3A, etc.
Material: sus304, sus316L and other stainless steel materials
Product description: good sealing, long service life
Quality: The inside and outside of the product are treated with high-grade polishing equipment to meet the surface precision requirements
Sealing ring: EPDM, NBR, PTFE
Packing: original factory packing
Working pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa
Working temperature: -10℃+150℃
Applicable medium: liquid, gas, oil, various highly corrosive chemical media
Applications: food, beverages, pharmaceuticals, dairy products, beer and fine chemicals
Installation and maintenance of imported sanitary flange butterfly valve:
When the butterfly valve is installed, the disc should be stopped in the closed position.
The opening position of the butterfly valve should be determined according to the rotation angle of the butterfly plate.
Butterfly valve Butterfly valve with bypass valve, the bypass valve should be opened before opening.
The butterfly valve should be installed in accordance with the manufacturer's installation instructions. The heavy butterfly valve should be installed with a firm foundation.
