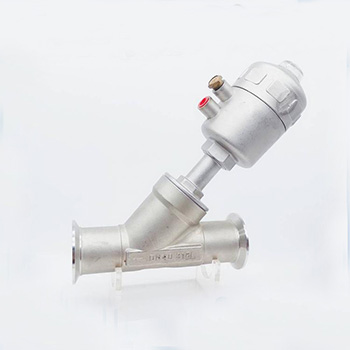

Imported sanitary pneumatic angle seat valve
American YLOK imported sanitary pneumatic angle seat valve body is made of 304 and 316 stainless steel as the main material. The main material of the cylinder can be industrial resin polyamide (PA) or stainless steel. The use of PLC and integrated control valve can realize centralized control and remote control, reduce various environmental and human interference, thereby further improving the equipment level of the enterprise. Compared with other valves, it has the advantages of economic investment, safe use, maintenance-free and long life. It is widely used in fluid control in a variety of industries, including beer and beverages, textile printing and bleaching, pharmaceuticals and medical equipment, food processing, rubber machinery, organic and inorganic chemicals, cleaning and disinfection, high temperature sterilization, water treatment, etc. Pure without impurities or corrosive Gas liquid.
Features of imported sanitary pneumatic angle seat valve
Using water and oil gas as the medium, the working life is 3 million times longer than similar competitive products;
The double-layer packing seal cover is automatically adjusted in the valve stem, which has excellent air tightness;
Lengthened waterproof hammer guide and dustproof seal ring design;
Equipped with imported sanitary pneumatic angle seat valve with pilot-operated air pressure, with a zero leakage life of more than 5 million times;
Repair-free actuator with long-life piston ring;
The open type has no vibration, and the air consumption is reduced by 40% compared with ordinary valves. ⑩ There is no water hammer, and the flow rate is 50% higher than that of the stop valve.
Imported sanitary pneumatic angle seat valve parameters
Specification range: DN15-DN100
Pressure range: 0-16bar;
Medium temperature: -10℃-+180℃;
Ambient temperature: -10℃-+60℃;
Body material: stainless steel 304, 316;
Sealing material: PTFE, NBR, fluorine rubber or silicon rubber;
Actuator housing: polyamide PA or stainless steel
Connection method: flange connection
Application range of imported sanitary pneumatic angle seat valve
Filling equipment for beer and beverages, printing and textiles, gas industry, pharmaceutical and medical equipment, chemical industry, high temperature sterilization, foaming machinery, water pollution treatment

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.

Contact: Peng gong
Q Q: 2030185432
Mobile: 18918462396(WeChat same number - 24 hours service)
Landline: 021-59718851
E-mail :kunage@126.com
