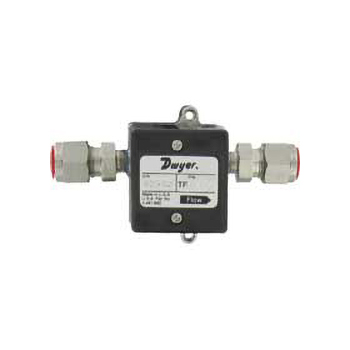

TFM-LP series liquid turbine flowmeter
316 stainless steel body, 0-5VDC output and pulse output
Series TFM-LP Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. Couple this unit with a Series TM2 Flow Totalizer for a remote flow monitoring display. A power adapter or mating cable assembly is required for operation.
Service: Clean liquids compatible with wetted materials.
Wetted Materials: 316 SS, acetal, sapphire, glass, epoxy, and fluoroelastomer.
Accuracy: ± 1% of FS.
Linearity: ± 1% of FS.
Repeatability: ± 0.2% of FS.
Temperature Limits: 41 to 131 ° F (5 to 55 ° C); Storage: 32 to 158 ° F (0 to 70 ° C); Sensitivity: ± 0.2% of FS per ° C.
Pressure Limits: 500 psig (34.5 bar).
Process Connection: Compression fitting, see model table on Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See accessories table.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.86 lb (390 g).
Agency Approvals: CE.
