GFC series gas mass flow
controller
product manual:
Flow measurement range up to 1000L / min, pressure resistance to 500psi, and NIST traceability certificate available

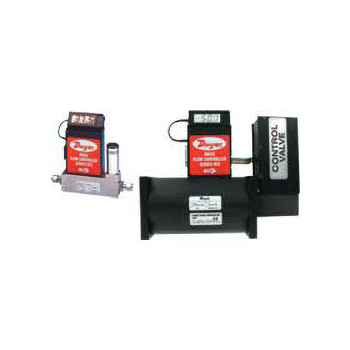

The GFC series gas mass flow
controller combines a throttling device and a straight tube
sensor to measure flow accurately and reliably. It is not affected by changes in temperature and pressure. GFC mass flow
controller with PID adjustment and control valve can keep the flow constant. The flow set point can be set on the spot or remotely by potentio
meter with 0-5VDC or 4-20mA signal. Adopt 3 and a half digital display gas flow, LCD display can be rotated 90 degrees. Use with GFT Sydney Flow Totalizer to accumulate flow. GFC comes with a NIST traceability certificate.
Specifications:
Service: Clean gases compatible with wetted parts.
Wetted Materials: GFC-1XXX: Anodized aluminum, brass, 316 SS and fluoroelastomer O-rings; GFC-2XXX: 316 SS and fluoroelastomer O-rings.
Accuracy: ± 1% FS including linearity over 59 to 77 ° F (5 to 25 ° C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS.
Repeatability: ± 0.5% of FS.
Response Time: 2 seconds to within ± 2% of actual flow.
Output: Linear 0 to 5 VDC and 4 to 20 mA.
Maximum Particulate Size: 5 microns.
Temperature Limits: 32 to 122 ° F (0 to 50 ° C).
Power Supply: ± 12 VDC.
Process Connections: 1/4 "compression fitting for flow rates ≤50 L / m; 3/8" for 100 and 200 L / m; 1/2 "for 500 L / min; 3/4" for 1000 L / min.
Pressure Limits: 1000 psig (68.9 bar); Series GFC-X143, X144, X145, 500 psig (34.5 bar).
Leak Integrity: 1 x 10-9 sccs of He.
Display: 90 ° tiltable, 3-1 / 2 digit.
Agency Approvals: CE.
