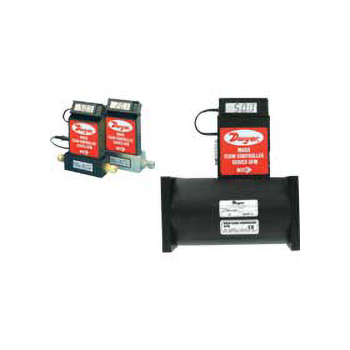

GFM series gas mass flowmeter
product manual:
Flow measurement range up to 1000L / min, pressure resistance to 500psi, and NIST traceability certificate available
The GFM series gas mass flow meter combines a throttling device and a straight tube sensor to measure flow accurately and reliably. It is not affected by changes in temperature and pressure. Adopt 3 and a half digital display gas flow, LCD display can be rotated 90 degrees. Can be used with GFT Sydney Flow Totalizer. GFM comes with a NIST traceability certificate.
Specifications:
Service: Clean gases compatible with wetted parts.
Wetted Materials: GFM-1XXX: anodized aluminum, brass, 316 SS and fluoroelastomer o-rings; GFM-2XXX: 316 SS and fluoroelastomer o-rings.
Accuracy: ± 1% FS including linearity over 59 to 77 ° F (5 to 25 ° C) and 5 to 60 psia (0.34 to 4 bar); Series X143, X144, X145, ± 1.5% FS.
Repeatability: ± 0.5% of full scale.
Response Time: 2 seconds to within ± 2% of actual flow.
Output: Linear 0-5 VDC and 4-20 mA.
Maximum Particulate Size: 5 microns.
Temperature Limits: 32 to 122 ° F (0 to 50 ° C).
Power Supply: 12-26 VDC.
Process Connections: 1/4 "compression fitting for flow rates ≤50 L / m; 3/8" for 100 and 200 L / m; 1/2 "for 500 L / min; 3/4" for 1000 L / min.
Pressure Limits: 1000 psig (68.9 bar); Series GFM-X143, X144, X145, 500 psig (34.5 bar).
Leak Integrity: 1 x 10-9 sccs of Helium.
Display: 90 ° tiltable, 3-1 / 2 digit.
Agency Approvals: CE.
