The manual valve uses manual wheels, handles, levers, and sprocket wheels to manually operate the valve. When the valve opening and closing torque is large, this wheel or worm gear reducer can be set between the handwheel and the valve stem. If necessary, you can also use the universal joint and drive shaft for long-distance operation.
Electromagnetic valve (Electromagnetic valve) is an industrial equipment controlled by electromagnetic, is used to control the automation of basic components of fluids, belongs to the actuator, not limited to hydraulic, pneumatic. Used in industrial control systems to adjust the direction, flow, speed and other para
meters of the medium. The solenoid valve can be used with different circuits to achieve the desired control, and the accuracy and flexibility of the control can be guaranteed. There are many kinds of solenoid valves. Different solenoid valves play a role in different positions of the control system. The most commonly used are check valves, safety valves, directional control valves, speed regulating valves and so on.
There is a closed cavity in the solenoid valve, and there are through holes in different positions. Each hole is connected to a different oil pipe. The middle of the cavity is a piston. On both sides are two electromagnets. Side, by controlling the movement of the valve body to open or close different exhaust holes, and the air intake holes are always open, compressed air will enter different trachea tubes, and then the piston of the cylinder is pushed by the pressure of the oil, the piston in turn Drive the piston rod, and the piston rod drives the mechanical device. In this way, the movement of the electromagnet is controlled to control the mechanical movement.
Solenoid valve classification: two-position five-way solenoid valve, three-position five-way solenoid valve, two-position three-way solenoid valve, five-port two-position solenoid valve, five-port three-position solenoid valve, three-port two-position solenoid valve, pneumatic valve, mechanical valve , Seizing valve, button valve, pilot operated solenoid valve, foot valve, manual valve, sliding vent valve, sliding vent valve, rapid exhaust valve, flow control valve, air pressure induction valve, check valve, etc.
List of

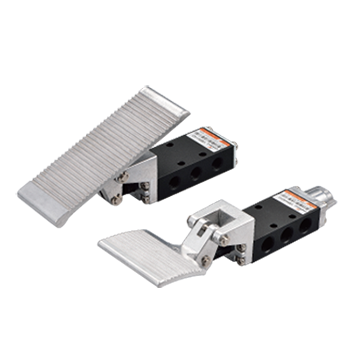

CHANTO specifications:
Product Name Model Model Model Model
Manual valve / Stop valve VBM301-02
Manual valve / Stop valve VBM302-02 Foot valve VBM303-02
Manual valve / Stop valve VBM310-02
Manual valve / Stop valve VBM312-02 Foot valve VBM311-02
Manual valve / Stop valve VBM401-02
Manual valve / Stop valve VBM402-02 Foot valve VBM403-02
Manual valve / Stop valve VBM401-03
Manual valve / Stop valve VBM402-03 Foot valve VBM403-03
Manual valve / Stop valve VBM410-02
Manual valve / Stop valve VBM412-02 Foot valve VBM411-02
Manual valve / Stop valve VBM410-03
Manual valve / Stop valve VBM412-03 Foot valve VBM411-03
Manual Valve / Stop Valve VBM410-02-3
Foot valve VBM411-02-3
Manual Valve / Stop Valve VBM410-03-3
Foot valve VBM411-03-3
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
