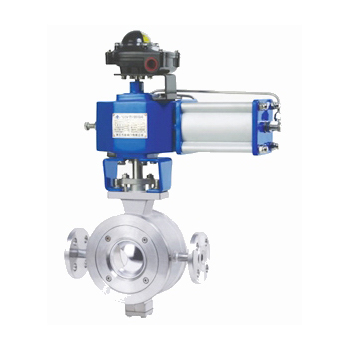

Product name: Imported pneumatic V-ball valve Product model:
Buhrer
Drive method: pneumatic, electric, manual, hydraulic connection: flange, wafer type
Structure: one-piece, two-piece seal structure: PTFE, PPL, hard seal, O-ring
Pressure range: 1.0MPa-10MPa Nominal dia
meter: DN25-300
Common materials: WCB, stainless steel, 304, 316, chrome molybdenum steel, titanium alloy steel, etc.
Product introduction
The imported pneumatic V-type ball valve produced by Breer can be driven by pneumatic, electric, manual, hydraulic, and flanged, wafer type. The structure can be integrated or two-piece. The sealing structure can be PTFE. , PPL, hard seal, O-ring, pressure range PN1.0MPa-10MPa, nominal dia
meter is DN25-300mm, material can choose WCB, stainless steel, 304,316, chromium molybdenum steel, titanium alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
The imported pneumatic V-ball valve is a hard-sealed, PTFE-sealed V-ball valve. It uses a leaf spring-loaded movable valve seat structure. The valve seat and the ball do not cause problems such as blocking or disengagement. The seal is reliable and the service life is long. The V-shaped ball valve spool is designed with a V-notch with a special switch, which has a large flow capacity and a small pressure loss, and has accurate shut-off characteristics and control functions. The flow characteristics are approximately equal percentages. The opening and closing part adopts a V-ball structure, which completely solves the problem of easy deposition of medium in the valve cavity.
The imported pneumatic V-type ball valve is suitable for various pipelines with Class150 ～ 600, PN1.6 ～ 10.0MPa and working temperature ≤300 ℃, and is used to adjust the pressure and flow of the medium in the pipeline. Different materials are used, which can be suitable for various media such as water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, etc. Because the valve core and the valve seat rotate without a gap, it has a large shear force and self-cleaning performance, and is particularly suitable for the control of suspensions and solid particles containing fibrous or micro solid particles. Therefore, this product can be widely used in the petroleum, chemical, papermaking, power, metallurgy, pharmaceutical, environmental protection and other industrial sectors of the automatic control system.
Suitable for regulating the flow of the valve, with precise flow characteristics
For harsh media with solid materials (not applicable for PTFE seals)
The bottom shaft seal is a movable pressure block, which facilitates the maintenance of the seal.
Small and economical body
Drive compressed air 4-7bar (with handwheel)
Nominal dia
meter 25-300mm
Nominal pressure 1.6 ~ 10.0MPa
Applicable temperature PTFE: -20 ℃ ~ + 180 ℃
Alloy: -40 ℃ ~ + 425 ℃
Connection: flange, wafer
Valve structure: one piece, two pieces
Body material: 316L, 316, 304, carbon steel
Valve ball material: 316L, 316, 304
Sealing material: PTFE, alloy
Applicable medium: gas, water and oil
Optional accessories: limit switch,
positioner, solenoid valve, pressure reducing valve
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
∷
