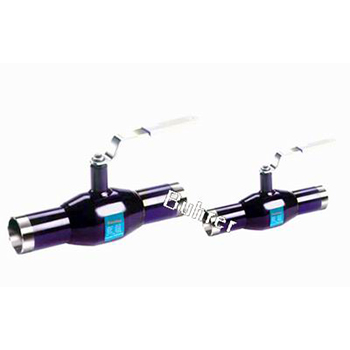

Product name: Imported integrated butt-welded ball valve Product model:
Buhrer series
Drive mode: manual, electric, pneumatic Connection form: butt welding, welding, flange
Structure: one-piece, direct-buried Seal structure: PTFE, RPP
Pressure range: 150LB-2500LB Nominal dia
meter: DN15-1500
Common materials: carbon steel, 304, 316, titanium alloy steel, etc.
Product introduction
The imported integrated butt-welded ball valve produced by Breer can be driven manually, electrically, pneumatically, butt-welded, welded, and flanged. The structure can be integrated, buried or sealed. PTFE , RPP, pressure range PN150LB-2500LB, nominal dia
meter is DN15-1500mm, the material can choose carbon steel, 304,316, titanium alloy steel and so on. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported integrated butt-welded ball valves are widely used in various fields. Its superior quality and high performance stability, imported integrated butt-welded ball valves are suitable for media: petroleum, gasoline, liquefied natural gas, liquefied petroleum gas, petrochemical industry, steel plants, heating pipelines, etc., and their service life is far greater than 30 years the above.
1 Imported integrated butt-welded ball valve, no leakage point, more reliable and safer
2 short structure and light weight
3 There is spring support on the back of the valve seat, and the valve life is more than 30 years under normal operation.
4 Inlet and outlet double-port seals, the valve ball sealing surface is in a protected state when the valve is opened
5 Valve can cut off dirt when opened and closed
6 connection method: flange, full welding, one end thread and one end welding
The integral butt-welded ball valve has a full dia
meter and fixed pivot structure.
The valve seat and stem are sealed twice, and the valve seat has an independent grease injection port.
Fixed ball interception and relief function, equipped with double piston effect valve seat, zero leakage.
The valve body is fully welded, and the valve stem can be extended for buried use.
Anti-static, fire-safe and anti-blowout function.
long lasting.
Size range: 1/2 "to 36"
Pressure range: 150LB-2500LB
Body material: carbon steel, stainless steel 316
Valve ball material: stainless steel SS304, stainless steel SS316
Seat Material: Carbon Fiber Reinforced Teflon
Central heating: large-scale heating equipment output pipeline, main line, branch line. Heat exchanger: the opening and closing of pipes and circuits. Iron and steel plants: various fluid pipelines, exhaust gas pipelines, gas and heat supply pipelines, fuel supply pipelines.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
∷
