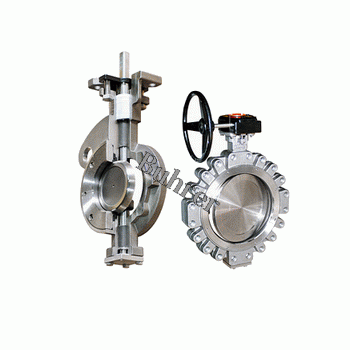

Product Name: Imported Hard Seal Butterfly Valve Product Model: Buhrer
Drive method: manual, electric, pneumatic Connection: flange, wafer
Structure: All metal Seal structure: Metal hard seal
Pressure range: 150LB-1500LB Nominal diameter: DN50-1800
Common materials: carbon steel, 304, 316, 316L, alloy steel, etc.
Product introduction
The imported hard-sealed butterfly valve produced by Breer can be driven manually, electrically, pneumatically, and flanges and wafers can be used as the connection method. All metal structures can be used for the structure. Metal hard seals can be used for the sealing structure. The nominal diameter is DN50-1800mm, and the material can be selected from carbon steel, 304, 316, 316L, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
The imported hard-seal butterfly valve is a three-eccentric oblique cone all-metal seal ring, which has good sealing performance and can adapt to occasions where the medium pressure and temperature change suddenly. Because the butterfly valves are generally all-metal structure, do not contain any asbestos, graphite soft padding, will not cause pollution to the medium, butterfly valves generally use the handle, worm gear, pneumatic, hydraulic and electric five transmission methods. Therefore, it is particularly suitable for petrochemical, power generation, metallurgy, pharmaceutical, beverage, and industrial requirements.
Standard Specification for Imported Metal Hard Seal Butterfly Valve:
Size: DN80 ~ 1800
Applicable temperature: -29 ~ 815 ℃
Maximum pressure: ANSI 150LB, 300LB, 600LB, 900LB, 1500LB,
Body material: carbon steel, stainless steel, aluminum bronze, special materials
Valve plate material: carbon steel, stainless steel, special alloy
Stem material: stainless steel, special material
Seat material: Stellite alloy, stainless steel
Features and advantages:
l Fire safety
l Full metal structure
l Zero leakage, two-way seal
l Triple eccentric design
l Connection method: Wafer, flange, lug, butt welding
Application:
Suitable for oil and gas, petrochemical, power station, general industry, metallurgy.
Applicable medium: oil, gas, water, steam, various hydrocarbons, abrasive media.
