Product name: Imported bellows safety valve Product model:
Buhrer
Drive method: automatic Connection type: flange
Structural form: Full-open type Seal structure: Bellows
Pressure range: 150 ~ 1500LB Nominal dia
meter: DN25-200
Common materials: WCB, 304, 316, alloy steel, etc.
Product introduction
The imported bellows safety valve produced by Breer can be driven automatically or flanged for connection. Fully open type can be used for sealing. Bellows can be used for sealing structure. The pressure range is PN150 ~ 1500LB. 200mm, the material can choose WCB, 304,316, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details

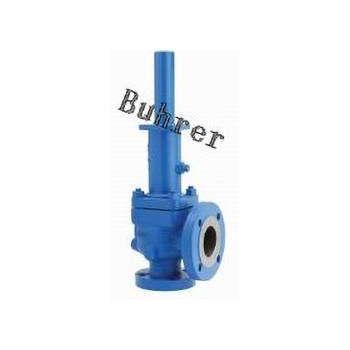

Imported bellows safety valve-American
Buhrer brand connection form flange, main material carbon steel, structural form spring full-open safety valve, closed valve body structure, pressure pipes and vessels as overpressure protection devices, stainless steel formed bellows, To ensure zero leakage of the medium, it can balance the back pressure at the outlet of the safety valve and ensure the set pressure.
Safety valve product specifications:
1 ″ to 16 ″ inches
Set pressure up to 850 bar-g
Discharge temperature from -268 ° C to 550 ° C
Flange pressure rating from 150LB to 1500LB
Product features:
Flange connection, DIN and ANSI standard flanges
Nozzle and spool are suitable for steam, gas, liquid
Spring has a very wide adjustment range
Single valve stem, double guide, center positioning ball design, ensure the safety valve has very good sealing and service life
The safety valve body adopts a dead zone-free design, which avoids the medium that may remain during the safety valve discharge and the corrosion that may cause the safety valve body
Few safety valve parts, strong interchangeability, compact appearance and easy maintenance
With closed bonnet
Safety valve body material is WCB, 304, 316L, etc.
Safety valve nozzle and spool material are 304, 316, 317, 316L, MONEL, INCONEL, Hastelloy, etc.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
