Product name: Imported thread safety valve Product model:
Buhrer series
Drive method: Automatic Connection form: Thread
Structure: Micro-opening Seal structure: Hard seal
Pressure range: 150-4500LB Nominal dia
meter: DN15-80
Common materials: WCB, 304, 316, alloy steel, etc.
Product introduction
The imported threaded safety valve produced by Breer can be driven by automatic mode, threaded by connection mode, micro-opening by structure, hard seal by sealing structure, pressure range PN150-4500LB, nominal dia
meter DN15-80mm, Material can be selected from WCB, 304, 316, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details

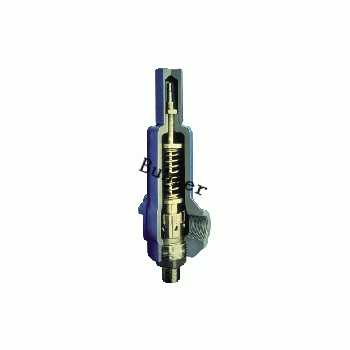

Imported threaded safety valve Spring-loaded micro-opening safety valve. The connection method is thread or flange connection, which fully meets the requirements of ANSI and GB standards. It is widely used in petrochemical, metallurgy, power plants, shipbuilding, tobacco and other fields.
Features of imported externally threaded safety valve:
Flange connection, ANSI and DIN standard flange
Threaded connection, NPT / BSP / G standard thread
Nozzle and spool are suitable for steam, gas, liquid
Spring has a very wide adjustment range
Single valve stem, double guide, center positioning ball design, ensure the safety valve has very good sealing and service life
The safety valve body adopts a dead zone-free design, which avoids the medium that may remain during the safety valve discharge and the corrosion that may cause the safety valve body
Few safety valve parts, strong interchangeability, compact appearance and easy maintenance
With closed bonnet
Safety valve body material is CS, 430F, 316L, WC6, WC9
Safety valve nozzle and valve core are made of 304, 316, 317, 316L, MONEL, INCONEL, Hastelloy, etc., all sealing surfaces are made of Stellite cemented carbide
Specifications
1/2 ″ to 1 ″ 3 valve sizes
Set pressure up to 850 bar-g
Discharge temperature from -268 ° C to 550 ° C
Flange pressure rating from 150LB to 4500LB
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
